Front and back cameras for identity verification
Fitted with a high resolution 5 megapixel (2592 x 1944 pixels) camera for capturing documents and 2 megapixel (1600x 1200 pixels) front camera for taking photos of customers.

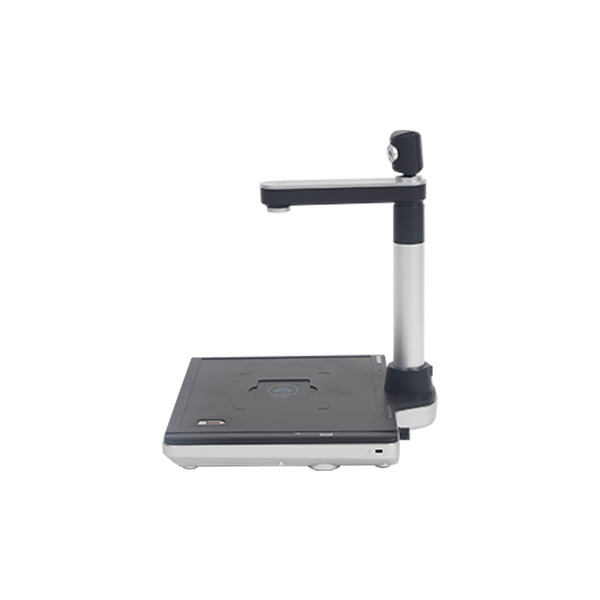

Document Scanner MK-500(C)
FEATURES
-
-
Multiple financial modules for business need
Expanded functionality with scanner, magnetic card reader, IC card reader, ID card reader and fingerprint.
-
Rich slots & ports for various applications
Support dual IC card slots, three tracks on magnetic cards, optional USB ports and PSAM slots.
-
Secure and remote management system
Optional management software for remote update.

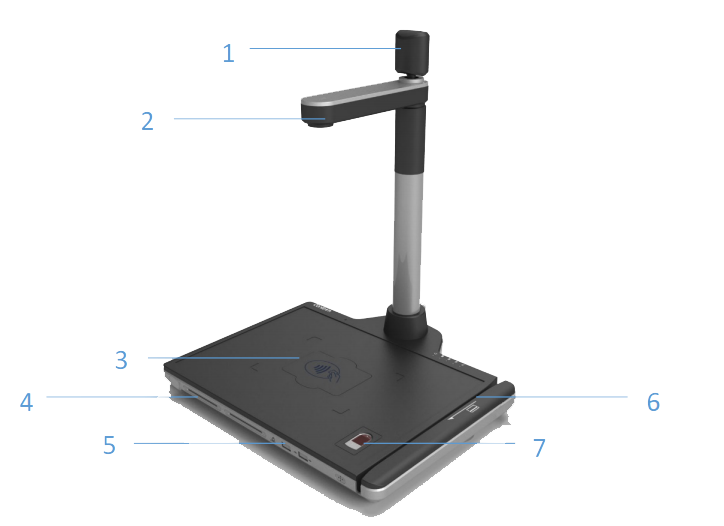

CONNECTIVITY
- 1. Main Camera
- 2. Front Camera
- 3. Contactless IC Card
- Module & ID Card Module
- 4. Contact IC Card Module
- 5. USB Port (optional)
- 6. Magnetic Card Module
- 7. Fingerprint (optional)
Features
● Fully functioning Android System
With Octa Core 2.0 GHz powerful CPU
● Easily install applications and highly customizable
Android 9 built-in for fast delopment of applications and tailore to system in accord with customers' needs
● Multiple Interfaces
Wi-Fi, GPS, Bluetooth for varied connectivity, as well as IC card reader,magnetic card reader and fingerprint scanner for on-counter or handheld-out usage
● Universally adapt-in anywhere
Easily suited for shelf mounting or on-counter usage in Finance, Insurance, Healthcare and Government institution
Connectivity
Specification
| Performance | |
| Processor | Octa-core 2.0 GHz |
| Operating System | Android 9 |
| RAM | 4GB |
| Storage | 64GB |
| Physical | |
| Display | 10. 1 inch IPS ; 1920*1200 16: 10 ; electro-magnetic &capacitance |
| Weight | Less than 1400g |
| Dimension | 333.7*180.7*17.5~29.6 (mm) |
| Connectivity | |
| GPS | A-GPS |
| Wi-Fi | 802. 11a/b/g/n/ac ; dual band for 2.4GHz and 5GHz |
| Bluetooth | 4.2 |
| Network | 4G(TD-LTE/LTE FDD/TD ; 3G(SCDMA/WCDMA/CDMA); 2G(GSM/CDMA) |
| Interface | X1 3.5 mm,earphone; X1 USB type-c, X 1 SIM |
| Screen | capacitance and electromagnetic |
| Peripheral | |
| Front cameras | 5 mega-pixel |
| Rear cameras | 13 mega-pixel |
| Microphone | Yes |
| Speaker | Yes |
| Pen | electromagnetic & passive |
| Battery | 10000mAh; |
| Sensor | Gravity and light induction |
| Function Key | (Vol+ / Vol-) / (Up / Down) / Exit / Power/Task/Home/Return |
| Fingerprint scanner | X1 |
| Contacted IC card reader | X1 EMV Level1; PBOX3.0 Level1/2 |
| Contact-less IC card reader | X1 EMV Level1; PBOX3.0 Level1/2 |
| Magnetic card reader | X1 track1/2/3, bi-directional; low-high magnetic-resistance |
| Multimedia | |
| Video | flv,mp4,mpv,ai |
| Picture | JPEG,GIF,BMP,PNG |
| Environmental | |
| Sealing | IP54 |
| Drop | 2m |
| Operation Temperature | 20℃ to 65℃ |
| Relative Humidity | 0% to 95% |
| Package (Optional) | |
| USB -type c | X 1 |
| Hand-bag | X 1 |
| Leather case | X 1 |
SPECIFICATION
+SCANNER
- Main Camera
- Front Camera
- Support
- Support
- Output Image Format
- Color Bit
- Speed
- Light Source
- Document Size
- MIC
- x 1 Main camera: 5 megapixel (2592 x 1944 pixels) for capturing documents;
- x 1 Front camera: 2 megapixel (1600x 1200 pixels)
- Support 0 – 320 degree horizontal rotation and 45 degree vertical rotation for easily capturing customers’ images
- Support one more optional camera: 2 megapixel (1600x 1200pixels)
- BMP / JPG / TIFF / GIF / PNG
- 24 bit
- 1 second
- LED
- A4 / A5 / A6
- Optional
MAGNETIC CARD READER
- Magnetic Track
- Speed
- Standard
- Standard: Track 2,3Optional: Track 1,2,3
- 20 – 120 cm/s
- Accord with ISO / IBM / ANSI / DIN, ISO7810 / 12 / 13
CONTACT IC CARD READER
- Contact IC Card Module
- Standard
- Standard: x 1
- Optional: x 2
Accord with 7816- 1, 2, 3, 4, EMV and PBOC 3.0
CONTACTLESS IC CARD READER
- Contactless IC Card Module
- Standard
- Support
- Accord with ISO / IEC 14443 A & B, EMV and PBOC 3.0
ID CARD READER
- ID Card Module
- Standard
- Support
- Accord with ISO / IEC 14443 B
FINGERPRINT
- Fingerprint Module
- Optional
USB PORT
- USB Port
- Optional: max up to 5 ( 2 in font and 3 on the side)
PSAM CARD SLOT
- PSAM Card Slot
- Optional: × 4
CABLE
- Interface
- Support USB port with COM port
POWER
- Power
- 12V / 1A
OPERATING SYSTEM
- Operating system
- Windows 2000 / XP / 7 / Vista / Win 8
