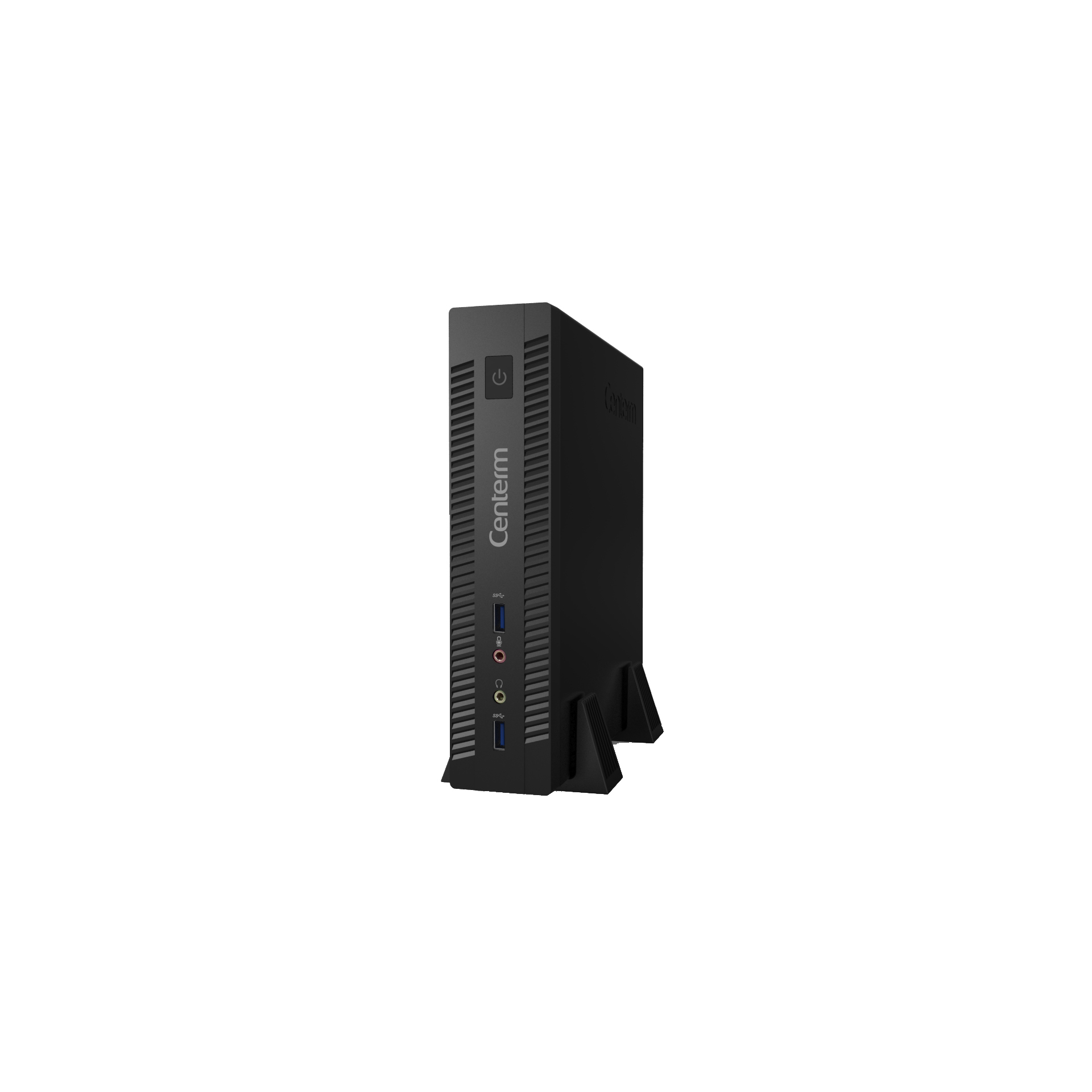

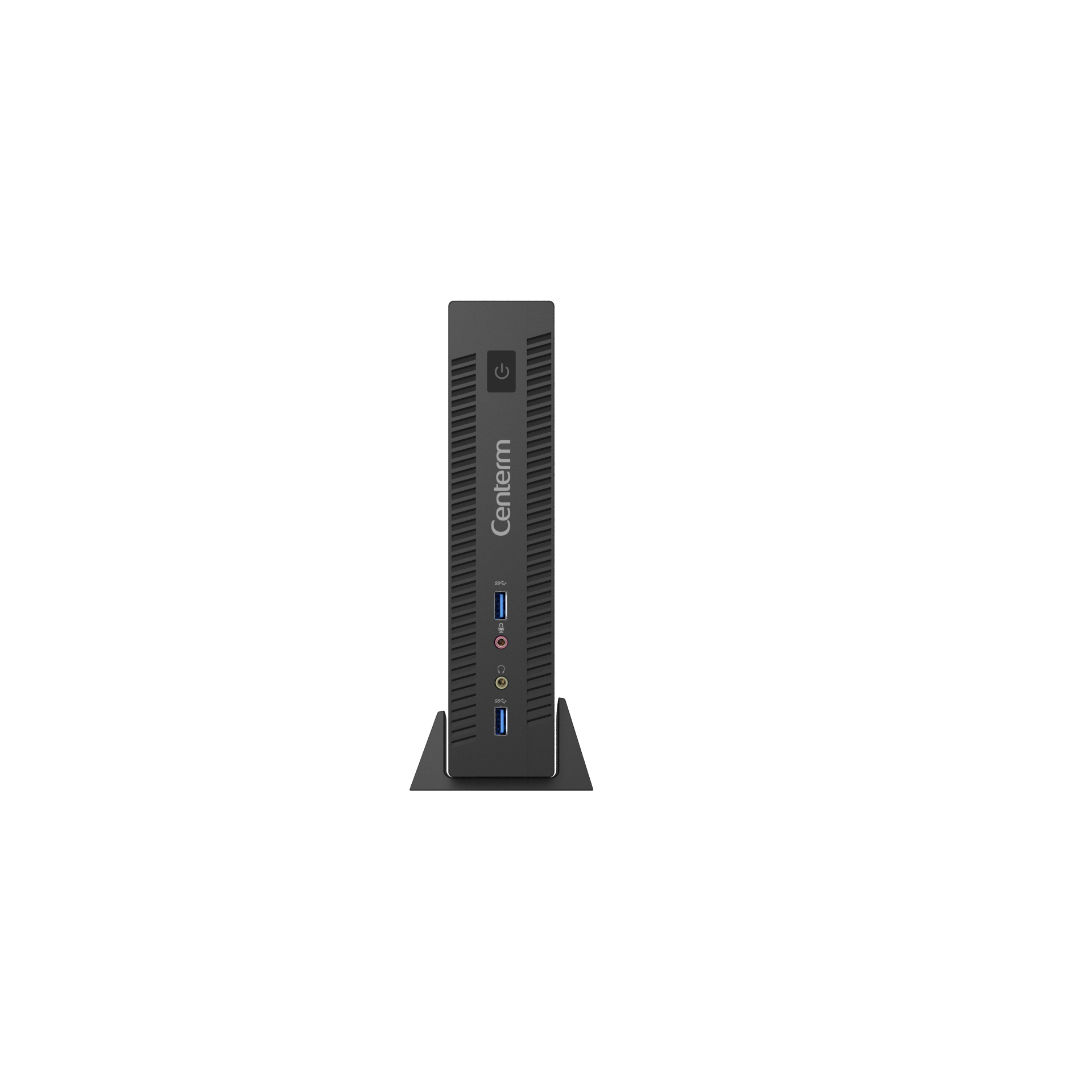

Centerm D620 Enterprise Thin Client
Centerm D620 Enterprise Thin Client
D620 is a highly efficient and powerful thin client for both local computing and Microsoft, Citrix, VMware virtual desktop environments. It has a zero-client style desktop with TOS or a Windows 10 IoT.
FEATURES
-
-
Multiple interfaces
For various applications and business demands.
-
Trusted Platform Module
Giving businesses a layer of protection for data from penetration.
-
Multiple VDI protocol supported
Widely supports Citrix ICA/HDX, VMware PCoIP and Microsoft RDP.

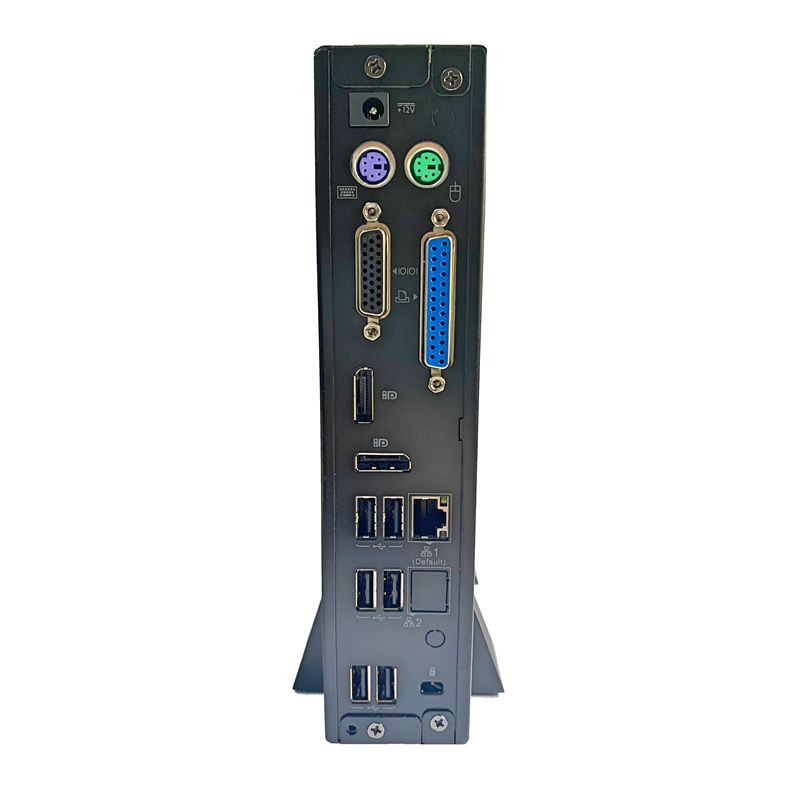

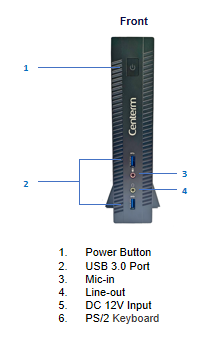

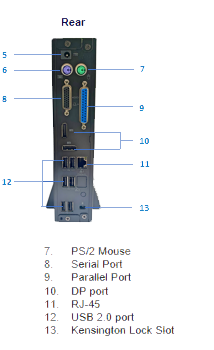

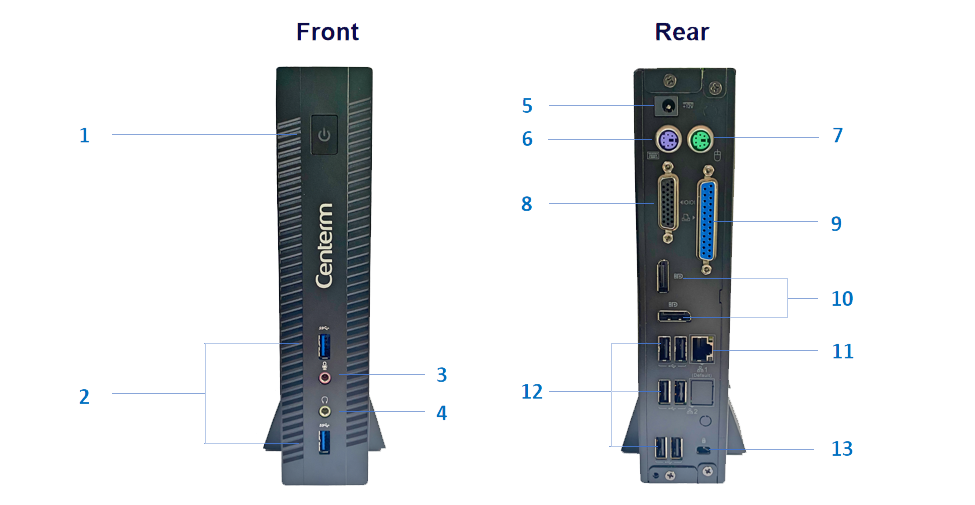

CONNECTIVITY
- 1. Power Button
- 2. USB 3.0 Port
- 3. Mic-in
- 4. Line-out
- 5. DC 12V Input
- 6. PS/2 Keyboard
- 7. PS/2 Mouse
- 8. Serial Port
- 9. Parallel Port
- 10. DP port
- 11. RJ-45
- 12. USB 2.0 port
- 13. Kensington Lock Slot
Features
● Real 4K display
DP could support resolution rate up to 4K.
● Multiple interfaces
For various applications and business demands
● Trusted Platform Module
Giving businesses a layer of protection for data from penetration.
● Multiple VDI protocol supported
Widely supports Citrix ICA/HDX, VMware PCoIP and Microsoft RDP.
● Multiple VDI protocol supported
Widely supports Citrix ICA/HDX, VMware PCoIP and RDP.
Connectivity
Specification
| Processor | Intel quad core 2.0 GHz |
| Available Operating System | WIN 10 IOT / TOS1 |
| Protocol Clients | Citrix receiver/ Microsoft Remote Desktop Client / VmwareTM Horizon ViewTM Client |
| Management | CDMS2 |
| RAM (DDR4) | 4GB |
| Storage (SSD) | 64GB mSATA |
| Display | 2 x DP |
| Resolution | 3840x2160@60Hz (DP) 3 |
| LAN | x 1 (10/100/1000Mbps,RJ45) |
| USB 2.0 | x 6 |
| USB 3.0 | x 2 |
| Serial Port | x 1 (extensible to 4 via cable) |
| Parallel Port | x 1 |
| PS/2 Port | x 2 |
| Audio | Line-out x 1 , Mic-in x 1 |
| Dimension | 206mm x 48mm x 215mm (stand excluded)/206mm × 83mm ×223mm (stand included) |
| Net Weight | 1.18 kg |
| Adapter | Worldwide auto-sensing 100-240V AC, 50/60 Hz, 12V/3A DC |
| TDP | < 10w |
| Mountings | Vertical feet standard |
| Security | Standard Kensington anti-theft keyhole |
| Cooling | Fan-less Convection |
| Operation Temperature | 0℃ to 40℃ |
| Relative Humidity | 30% to 90% non-condensing |
Optional Items
| RAM (DDR4) | Available at 16GB |
| Storage | 1 *mSATA，1* M.2: |
| Networking | Additional 1 x (10/100/1000Mbps,RJ45)1 x M.2 wireless module |
| Serial Port | Extensible to 6 |
| IC Card Reader | Optional |
| TPM module | Optional |
SPECIFICATION
+- Processor
- Available Operating System
- Protocol Clients
- Management
- RAM (DDR4)
- Storage (SSD)
- Display
- Resolution
- LAN
- USB 2.0
- USB 3.0
- Serial Port
- Parallel Port
- PS/2 Port
- Audio
- Dimension
- Net Weight
- Adapter
- TDP
- Mountings
- Security
- Cooling
- Operation Temperature
- Relative Humidity
- Intel Celeron Quad Core 2.0 GHz
- WIN 10 IOT / TOS1
- Citrix receiver/ Microsoft Remote Desktop Client / VmwareTM Horizon ViewTM Client
- CDMS2
- 4GB up to 16GB
- 128GB m.2 NAND SSD Storage up to 512GB
- 2 x DP
- 3840×2160@60Hz (DP) 3
- x 1 (10/100/1000Mbps,RJ45)
- x 6
- x 2
- x 1 (extensible to 4 via cable)
- x 1
- x 2
- Line-out x 1 , Mic-in x 1
- 206mm x 48mm x 215mm (stand excluded)/ 206mm × 83mm ×223mm (stand included)
- 1.18 kg
- Worldwide auto-sensing 100-240V AC, 50/60 Hz, 12V/3A DC
- < 10w
- Vertical feet standard
- Standard Kensington anti-theft keyhole
- Fan-less Convection
- 0℃ to 40℃
- 30% to 90% non-condensing
OPTIONAL ITEMS
+- RAM (DDR4)
- Storage
- Networking
- Serial Port
- IC Card Reader
- TPM module
- Available at 16GB
- 1 *mSATA， 1* M.2:
- Additional 1 x (10/100/1000Mbps,RJ45) 1 x M.2 wireless module
- Extensible to 6
- Optional
- Optional
