Fashion looks, empowered workforce
Supports a second display at 4K at 60Hz for productivity. Beside, get users to work fast with DDR4 2666 MHz memory and high-performance Intel processor options.

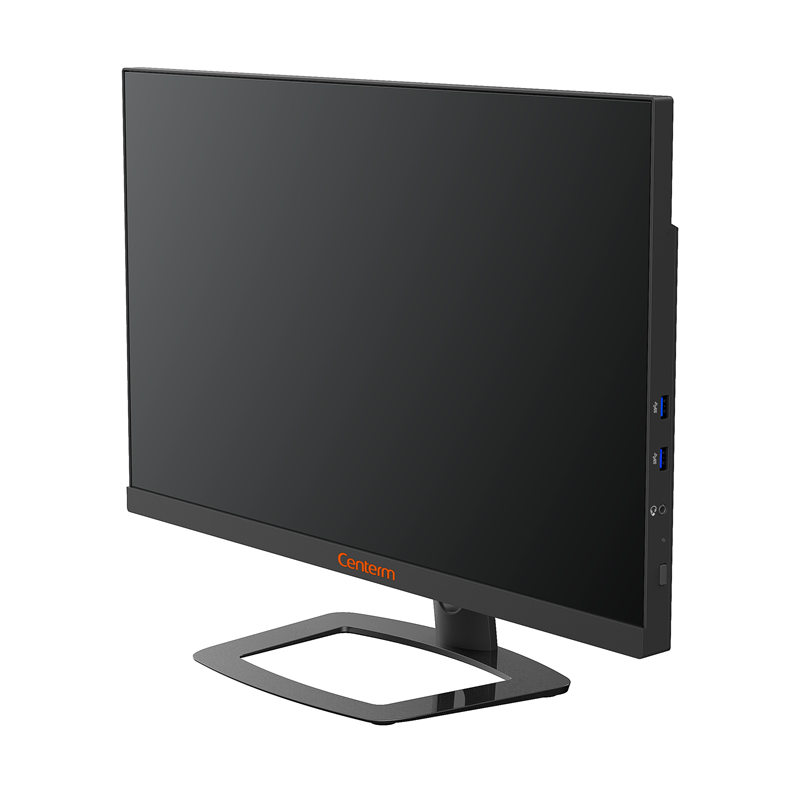

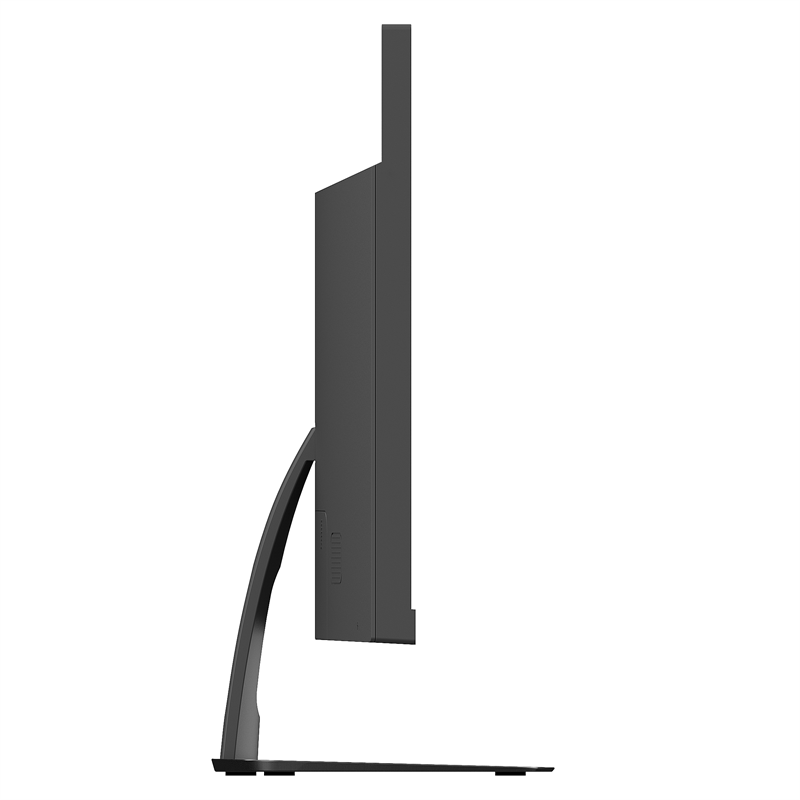

Centerm W660 23.8 inch All-in-one Thin Client
Centerm W660 23.8 inch All-in-one Thin Client
Innovating productivity equipped with10th generation Intel processor all-in-one client, with 23.8 inch and elegant design, powerful performance and good-looking appearance,to delivery
satisfied experience at office use or used as a task-dedicated computer.
FEATURES
-
-
Usual cloud computing protocol built-in
Designed, tested and validated for VDI scenarios from Microsoft, Citrix and VMware. providing excellent user experience.
-
Peripherals Compatibility And Transmission Capability
4 x USB3.0 ports, 4 x USB 2.0 ports, plus serial port and parallel port, adopting in the scenario of the heavy demands of the peripherals. Meanwhile, dual 1000-mbps network port bring a leisured internet suffering and a speeding data transmission.

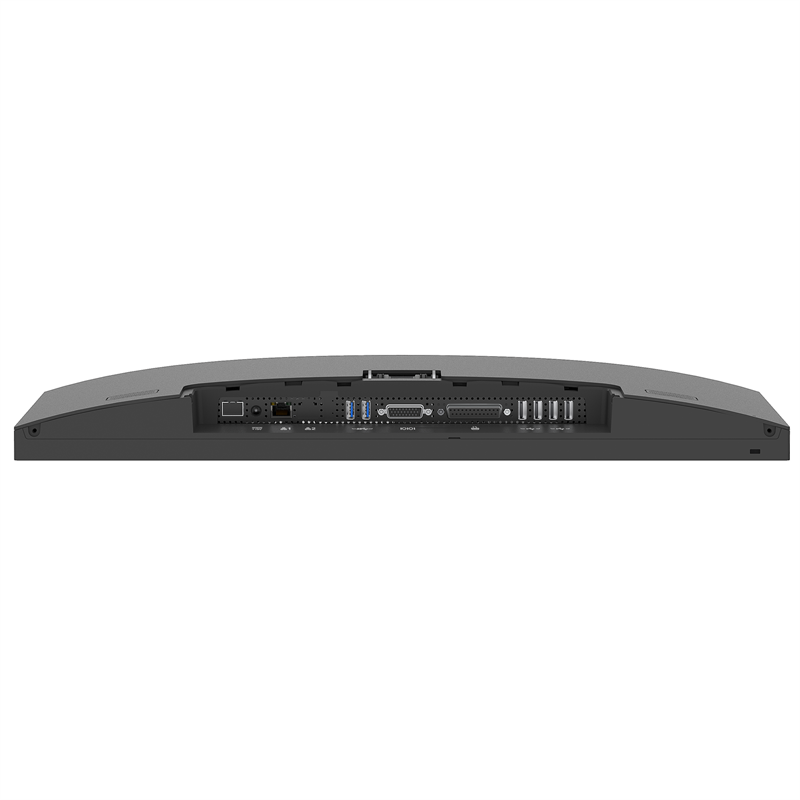

CONNECTIVITY
- 1.DC 19V input
- 2.RJ-45
- 3.RJ-45 (optional)
- 4.DP(optional)
- 5.USB3.0 ports
- 6.Serial port
- 7.Parallel port
- 8.USB 2.0 ports
- 9.Kensington locks
- 10.USB3.0 ports
- 11.Audio
- 12.Power button
Features
● Fashion looks, empowered workforce
Supports a second display at 4K at 60Hz for productivity. Beside, get users to work fast with DDR4 2666 MHz memory and high-performance Intel processor options
● Usual cloud computing protocol built-in
Designed, tested and validated for VDI scenarios from Microsoft, Citrix and VMware. providing excellent user experience.
● Peripherals compatibility and transmission capability
4 x USB3.0 ports, 4 x USB 2.0 ports, plus serial port and parallel port, adopting in the scenario of the heavy demands of the peripherals. Meanwhile, dual 1000-mbps network port bring a leisured internet suffering and a speeding data transmission
Connectivity
Specification
| Operating System | WIN 10 IOT | |
| Management | CDMS1 | |
| MEMORY | ||
| RAM (DDR4) | 8 GB | |
| Storage | 256 GB mSATA | |
| DISPLAY | ||
| Screen 23.8’ LVDS : 1920 x 1080@ 60Hz | ||
| NETWORK | ||
| LAN x 1 ( 10/ 100/ 1000 Base-T Fast Ethernet, RJ-45) | ||
| I/O PERIPHERAL | ||
| USB 2.0 | 4 | |
| USB 3.0 | 4 | |
| Serial Port | x 1 (extensible to 4 via cable) | |
| Parallel Port | 1 | |
| AUDIO | ||
| Port | 2-in- 1 Audio port | |
| Speaker | Yes | |
| DIMENSION | ||
| Device | 540.4mm x 321.6mm x 52.3mm (including stand)540.4mm x 390.4mm x 177.3mm (without stand) | |
| Weight | ||
| Net weight | 4.6kg | |
| POWER | ||
| Adapter Worldwide auto-sensing 100-240V AC, 19V/6.32A DC | ||
| MOUNTING | ||
| Stand | Vertical feet standard | |
| Security Standard Kensington anti-theft keyhole | ||
| ENVIRONMENT | ||
| Cooling Fan convection and heat sink kit | ||
| Kensington | Yes | |
| Operation Temperature 0℃ to 40℃ | ||
| Relative Humidity 30% to 90% non-condensing | ||
| Optional Configuration | |
| Processor | Hexa core 2.9 GHzHexa core 3. 1 GHzOcta core 2.9 GHz |
| RAM (DDR4) | Available at 32 GB |
| Storage | x 1 m.2 SSDx 1 SATA for HDD |
| Network | x 1 ( 10/ 100/ 1000 Base-T Fast Ethernet, RJ-45) |
| DP | x 1 ,4096*2304@60Hz |
| Fingerprint Scanner1 | Yes |
| Speaker | Yes |
| Camera1 | 5MP |
| Wi-Fi | x 1 m.2 |
| VESA | Yes |
SPECIFICATION
+SYSTEM
- Processor
- Operating System
- Management
- Intel quad core 3.6GHz
- WIN 10 IOT
- CDMS1
MEMORY
- RAM (DDR4)
- Storage
- 8 GB
- 256 GB mSATA
DISPLAY
- Screen
- 23.8’ LVDS :1920 x1080@ 60Hz
NETWORK
- LAN
- x 1 (10/100/1000 Base-T Fast Ethernet, RJ-45)
I/O PERIPHERAL
- USB 2.0
- USB 3.0
- Serial Port
- Parallel Port
- x 4
- x 4
- x1 (extensible to 4 via cable)
- x1
AUDIO
- Port
- Speaker
- 2-in-1 Audio port
- Yes
DIMENSION
- Device
- 540.4mm x 321.6mm x 52.3mm (including stand)
540.4mm x 390.4mm x 177.3mm (without stand)
Weight
- Net weight
- 4.6kg
POWER
- Adapter
- Worldwide auto-sensing 100-240V AC,19V/6.32A DC
MOUNTING
- Stand
- Security
- Vertical feet standard
- Standard Kensington anti-theft keyhole
ENVIRONMENT
- Cooling Fan
- Kensington
- Operation Temperature
- Relative Humidity
- convection and heat sink kit
- Yes
- 0℃ to 40℃
- 30% to 90% non-condensing
OPTIONAL CONFIGURATION
+- Processor
- RAM (DDR4)
- Storage
- Network
- DP
- Fingerprint Scanner1
- Speaker
- Camera1
- Wi-Fi
- VESA
- Hexa core 2.9 GHz, Hexa core 3.1 GHz, Octa core 2.9 GHz
- Available at 32 GB
- x 1 m.2 SSD
x 1 SATA for HDD - x 1 (10/100/1000 Base-T Fast Ethernet, RJ-45)
- x 1 ,4096*2304@60Hz
- Yes
- Yes
- 5MP
- x 1 m.2
- Yes
