Fully functioning Android System
With Octa Core 2.0 GHz powerful CPU

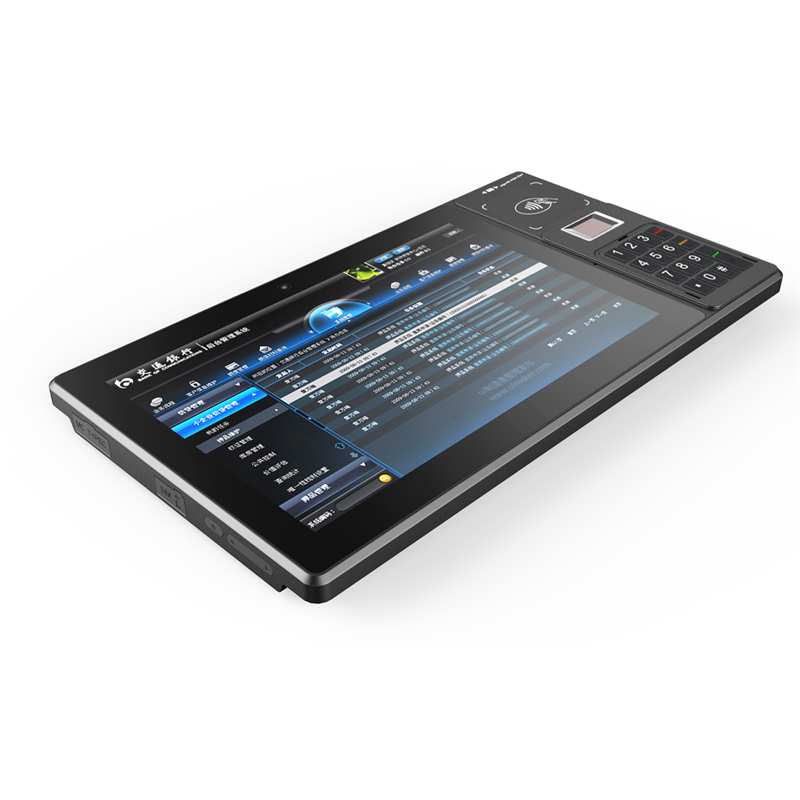

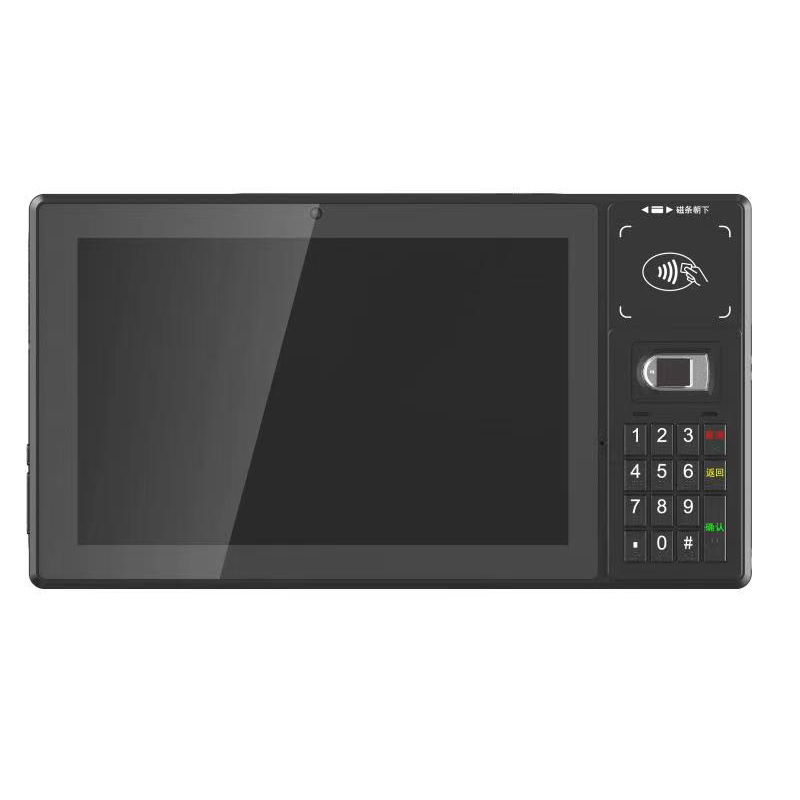

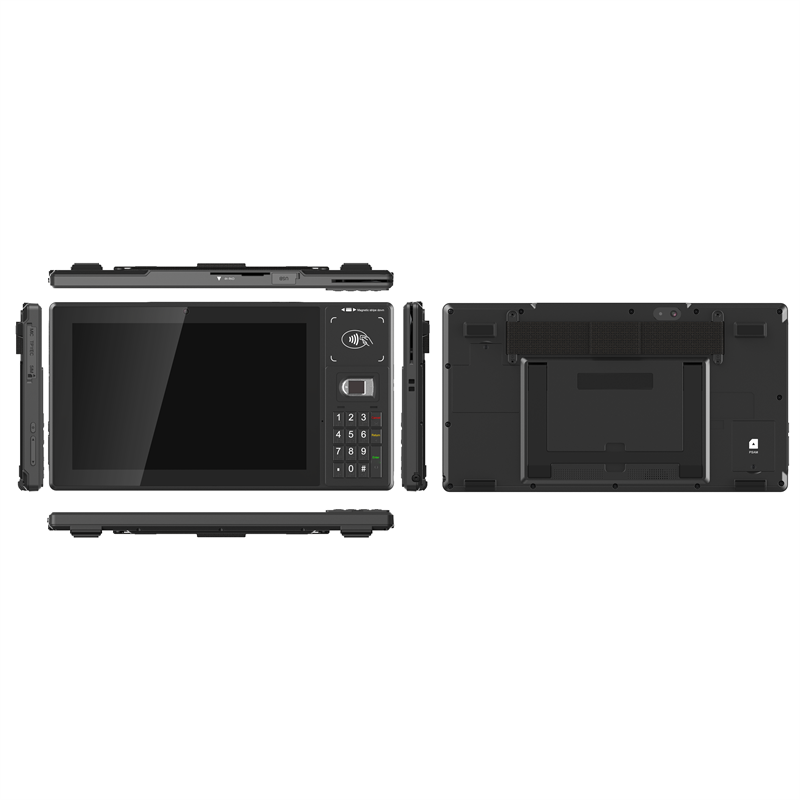

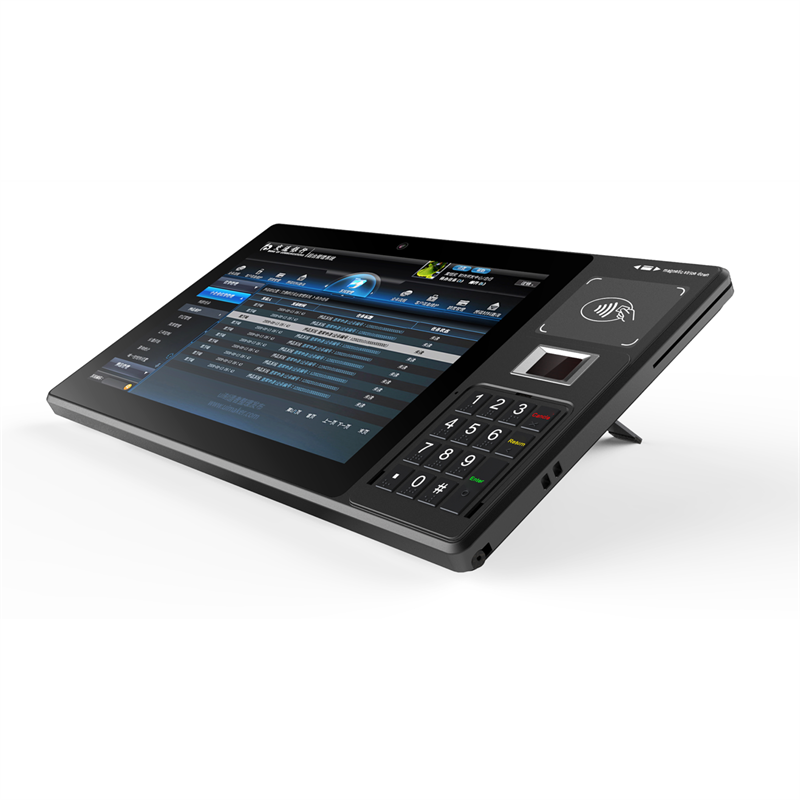

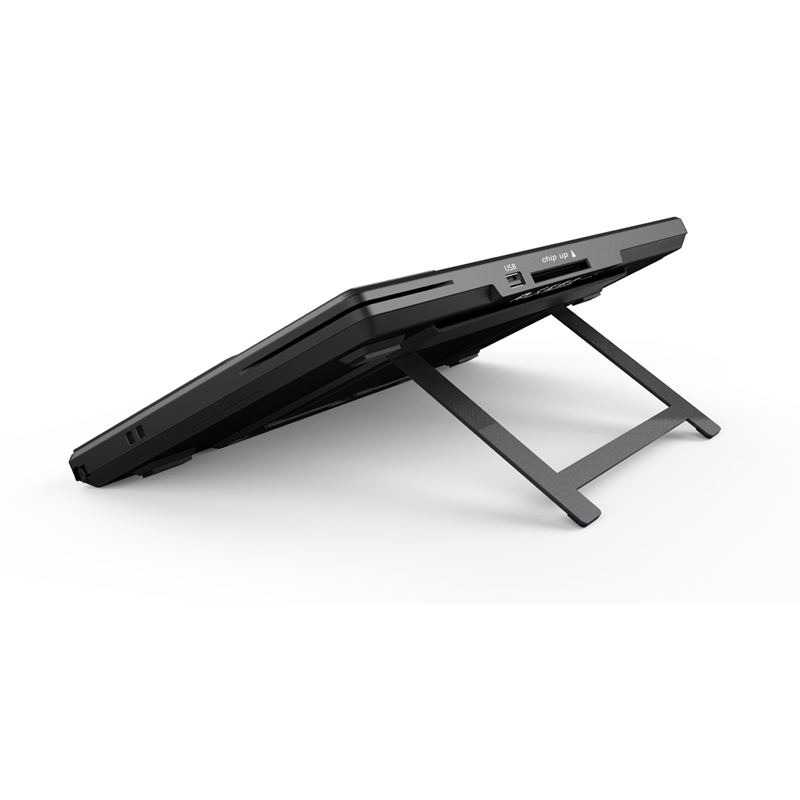

Centerm T101 Mobile Biometric Identity Tablet
Centerm T101 Mobile Biometric Identity Tablet
Centerm Android device is a android-based device with integrated function of pin pad, contacted & contact-less IC card, magnetic card, fingerprint, e-signature and cameras, etc. Moreover, communication approach of Bluetooth, 4G, Wi-Fi, GPS ; gravity and light sensor are involved for different circustances.
FEATURES
-
-
Easily install applications and highly customizable
Android 9 built-in for fast delopment of applications and tailore to system in accord with customers' needs.
-
Multiple Interfaces
Wi-Fi,GPS, Bluetooth for varied connectivity, as well as lC card reader, magnetic card reader and fingerprint scanner for on-counter or handheld-outusage.
-
Universally adapt-in anywhere
Easily suited for shelf mounting or on-counter usage in Finance, Insurance, Healthcare and Government institution.

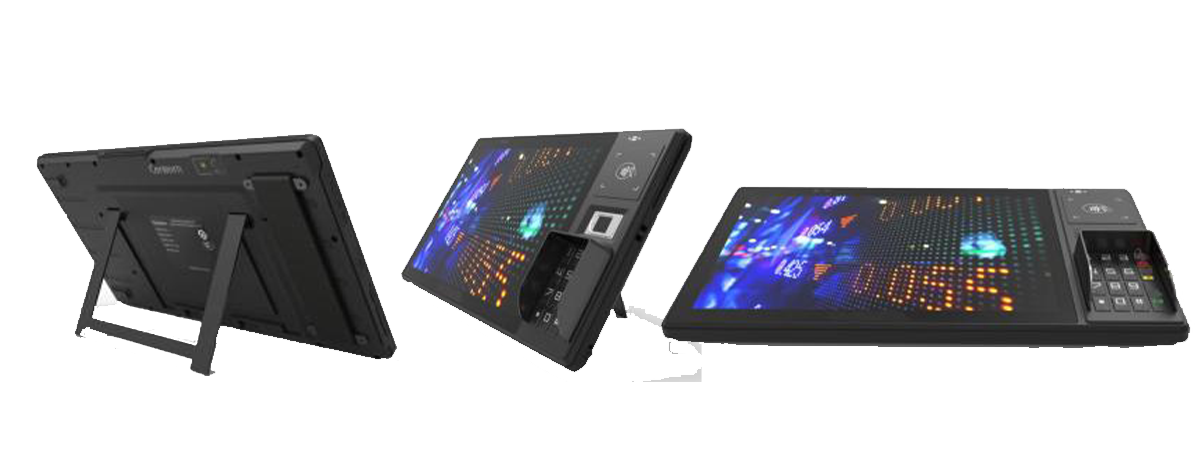

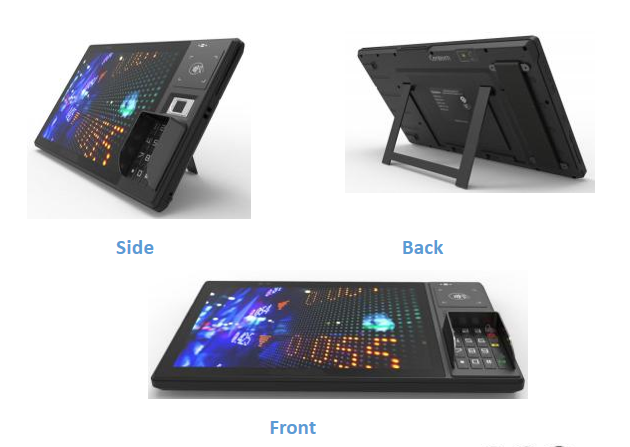

CONNECTIVITY
- Side
- Back
- Front
Features
● Fully functioning Android System
With Octa Core 2.0 GHz powerful CPU
● Easily install applications and highly customizable
Android 9 built-in for fast delopment of applications and tailore to system in accord with customers' needs
● Multiple Interfaces
Wi-Fi, GPS, Bluetooth for varied connectivity, as well as IC card reader,magnetic card reader and fingerprint scanner for on-counter or handheld-out usage
● Universally adapt-in anywhere
Easily suited for shelf mounting or on-counter usage in Finance, Insurance, Healthcare and Government institution
Connectivity
Specification
| Performance | |
| Processor | Octa-core 2.0 GHz |
| Operating System | Android 9 |
| RAM | 4GB |
| Storage | 64GB |
| Physical | |
| Display | 10. 1 inch IPS ; 1920*1200 16: 10 ; electro-magnetic &capacitance |
| Weight | Less than 1400g |
| Dimension | 333.7*180.7*17.5~29.6 (mm) |
| Connectivity | |
| GPS | A-GPS |
| Wi-Fi | 802. 11a/b/g/n/ac ; dual band for 2.4GHz and 5GHz |
| Bluetooth | 4.2 |
| Network | 4G(TD-LTE/LTE FDD/TD ; 3G(SCDMA/WCDMA/CDMA); 2G(GSM/CDMA) |
| Interface | X1 3.5 mm,earphone; X1 USB type-c, X 1 SIM |
| Screen | capacitance and electromagnetic |
| Peripheral | |
| Front cameras | 5 mega-pixel |
| Rear cameras | 13 mega-pixel |
| Microphone | Yes |
| Speaker | Yes |
| Pen | electromagnetic & passive |
| Battery | 10000mAh; |
| Sensor | Gravity and light induction |
| Function Key | (Vol+ / Vol-) / (Up / Down) / Exit / Power/Task/Home/Return |
| Fingerprint scanner | X1 |
| Contacted IC card reader | X1 EMV Level1; PBOX3.0 Level1/2 |
| Contact-less IC card reader | X1 EMV Level1; PBOX3.0 Level1/2 |
| Magnetic card reader | X1 track1/2/3, bi-directional; low-high magnetic-resistance |
| Multimedia | |
| Video | flv,mp4,mpv,ai |
| Picture | JPEG,GIF,BMP,PNG |
| Environmental | |
| Sealing | IP54 |
| Drop | 2m |
| Operation Temperature | 20℃ to 65℃ |
| Relative Humidity | 0% to 95% |
| Package (Optional) | |
| USB -type c | X 1 |
| Hand-bag | X 1 |
| Leather case | X 1 |
SPECIFICATION
+Performance
- Processor
- Operating System
- RAM
- Storage
- Octa-core 2.0 GHz
- Android 9
- 4GB
- 64GB
Physical
- Display
- Weight
- Dimension
- 10. 1 inch IPS ; 1920*1200 16: 10 ; electro-magnetic &capacitance
- Less than 1400g
- 333.7*180.7*17.5~29.6 (mm)
Connectivity
- GPS
- Wi-Fi
- Bluetooth
- Network
- Interface
- Screen
- A-GPS
- 802. 11a/b/g/n/ac ; dual band for 2.4GHz and 5GHz
- 4.2
- 4G(TD-LTE/LTE FDD/TD ; 3G(SCDMA/WCDMA/CDMA); 2G(GSM/CDMA)
- X1 3.5 mm,earphone; X1 USB type-c, X 1 SIM
- capacitance and electromagnetic
Peripheral
- Front cameras
- Rear cameras
- Microphone
- Speaker
- Pen
- Battery
- Sensor
- Function Key
- Fingerprint scanner
- Contacted IC card reader
- Contact-less IC card reader
- Magnetic card reader
- 5 mega-pixel
- 13 mega-pixel
- Yes
- Yes
- electromagnetic & passive
- 10000mAh;
- Gravity and light induction
- (Vol+ / Vol-) / (Up / Down) / Exit / Power/Task/Home/Return
- X1
- X1 EMV Level1; PBOX3.0 Level1/2
- X1 EMV Level1; PBOX3.0 Level1/2
- X1 track1/2/3, bi-directional; low-high magnetic-resistance
Multimedia
- Video
- Picture
- flv,mp4,mpv,ai
- JPEG,GIF,BMP,PNG
Environmental
- Sealing
- Drop
- Operation Temperature
- Relative Humidity
- IP54
- 2m
- 20℃ to 65℃
- 0% to 95%
Package (Optional)
- USB -type c
- Hand-bag
- Leather case
- X 1
- X 1
- X 1
