4K display
DP option could support resolution rate up to 4K.
Centerm F620 Flexible Thin Client Desktop Computer
Centerm F620 Flexible Thin Client Desktop Computer
Powered by Intel CPU, Centerm F620 is designed to support CPU-intensive and graphic demanding applications delivering smooth and outstanding performance in the standalone and virtual desktop environment.
FEATURES
-
-
M.2 expansion
Support M.2 storage attached for a faster I/O.
-
Multiple VDI protocol supported
Widely supports Citrix ICA/HDX, VMware PCoIP and Microsoft RDP.
-
Trusted Platform Module
Give businesses a layer of protection for data from penetration.

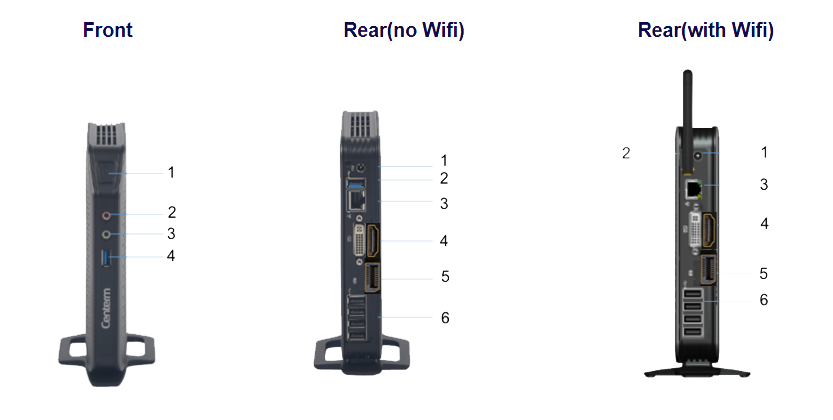

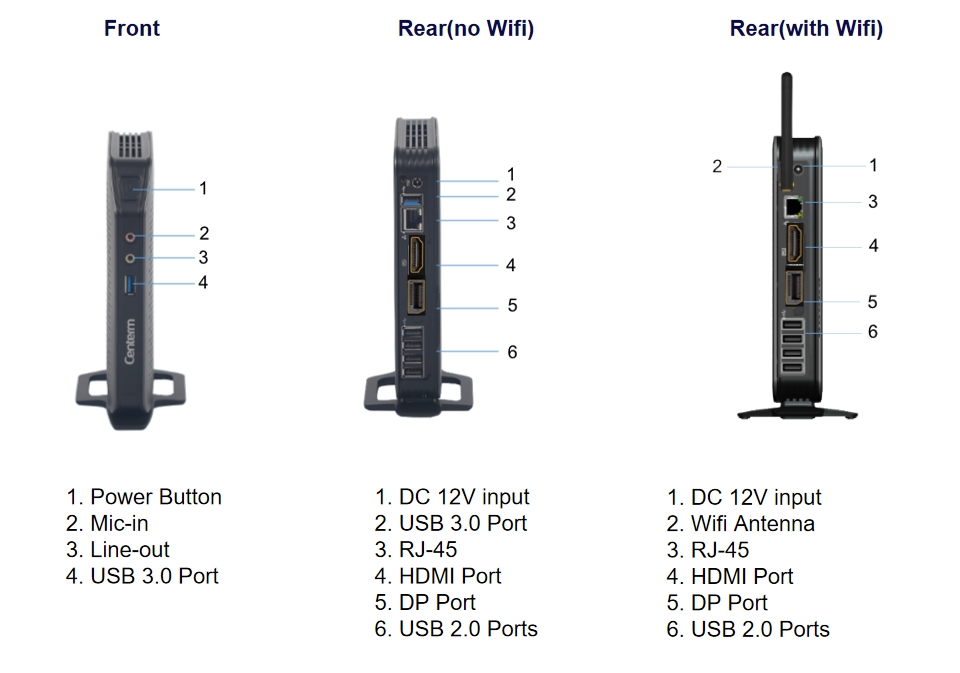

CONNECTIVITY
- Front
- 1. Power Button
- 2. Mic-in
- 3. Line-out
- 4. USB 3.0 Port
- Rear(no Wifi)
- 1. DC 12V input
- 2. USB 3.0 Port
- 3. RJ-45
- 4. HDMI Port
- 5. DP Port
- 6. USB 2.0 Ports
- Rear(with Wifi)
- 1. DC 12V input
- 2. Wifi Antenna
- 3. RJ-45
- 4. HDMI Port
- 5. DP Port
- 6. USB 2.0 Ports
Features
● 4K display
DP option could support resolution rate up to 4K.
● M.2 expansion
Support M.2 storage attached for a faster I/O.
● Multiple VDI protocol supported
Widely supports Citrix ICA/HDX, VMware PCoIP and Microsoft RDP.
● Trusted Platform Module
Give businesses a layer of protection for data from penetration.
Connectivity
Specification
| Processor | Intel quad core 2.0Ghz |
| Available Operating System | WIN 10 IOT / TOS1 |
| Protocols | Citrix receiver/Vmware View Client/RDP client |
| Management | CDMS2 |
| RAM (DDR4) | 4GB |
| Storage (SSD) | 64GB |
| Display | DP x 1 ；HDMI x 1 |
| Resolution | DP:3840x2160@60Hz; HDMI:3840x2160@60Hz |
| Color Depth | 32 bits |
| LAN | x 1 (10/100/1000Mbps, RJ-45) |
| USB 2.0 | x 4 |
| USB 3.0 | x 2 (no wifi)/1(with wifi) |
| Audio | Line-out x 1 , Mic-in x 1, (1/8-inch mini jack) |
| Dimension | 131mm x 31.5mm x 167mm (stand excluded)/131mm ×76mm ×178mm (stand included) |
| Net Weight | 0.51kg |
| Adapter | Worldwide auto-sensing 100-240V AC, 50/60 Hz, 12V/3A DC |
| Power Consumption | < 10w |
| Mountings | Vertical feet, standard |
| Security | Standard Kensington anti-theft keyhole |
| Cooling | Fan-less Convection |
| Operation Temperature | 0℃ to 40℃ |
| Relative Humidity | 30% to 90% non-condensing |
Specification (optional)
| RAM (DDR4) | Available at 8GB |
| Storage | M.2 （2242 or 2280）Storage |
| WIFI | 1 M.2 wireless3 |
| TPM Module | Optional |
| Mountings | VESA mounting bracket |
SPECIFICATION
+- Processor
- Available Operating System
- Protocols
- Management
- RAM (DDR4)
- Storage (SSD)
- Display
- Resolution
- Color Depth
- LAN
- USB 2.0
- USB 3.0
- Audio
- Dimension
- Net Weight
- Adapter
- Power Consumption
- Mountings
- Security
- Cooling
- Operation Temperature
- Relative Humidity
- Intel quad core 2.0Ghz
- WIN 10 IOT / TOS1
- Citrix receiver/Vmware View Client/RDP client
- CDMS2
- 4GB
- 64GB
- DP x 1 ；HDMI x 1
- DP:3840×2160@60Hz; HDMI:3840×2160@60Hz
- 32 bits
- x 1 (10/100/1000Mbps, RJ-45)
- x 4
- x 2 (no wifi)/1(with wifi)
- Line-out x 1 , Mic-in x 1, (1/8-inch mini jack)
- 131mm x 31.5mm x 167mm (stand excluded)/ 131mm ×76mm ×178mm (stand included)
- 0.51kg
- Worldwide auto-sensing 100-240V AC, 50/60 Hz, 12V/3A DC
- < 10w
- Vertical feet, standard
- Standard Kensington anti-theft keyhole
- Fan-less Convection
- 0℃ to 40℃
- 30% to 90% non-condensing
Optional items
+- RAM (DDR4)
- Storage
- WIFI
- TPM Module
- Mountings
- Available at 8GB
- M.2 (2242 or 2280)Storage
- 1 M.2 wireless3
- Optional
- VESA mounting bracket
