Cost-effective performance
Integrated Intel® Celeron J1900 quad-core, processor.
Centerm F610 Flexible Thin Client Desktop Computer
Centerm F610 Flexible Thin Client Desktop Computer
Powered by Intel CPU, Centerm F610 is designed to support CPU-intensive and graphic demanding applications delivering smooth and outstanding performance in the standalone and virtual desktop environment.
FEATURES
-
-
Dual display supported
Support dual monitors for multitask working.
-
Multiple VDI protocol supported
Widely supports Citrix ICA/HDX, VMware PCoIP and Microsoft RDP.
-
Environment friendly
Low CO2 emission, low heat emission, noise-free and space saving.

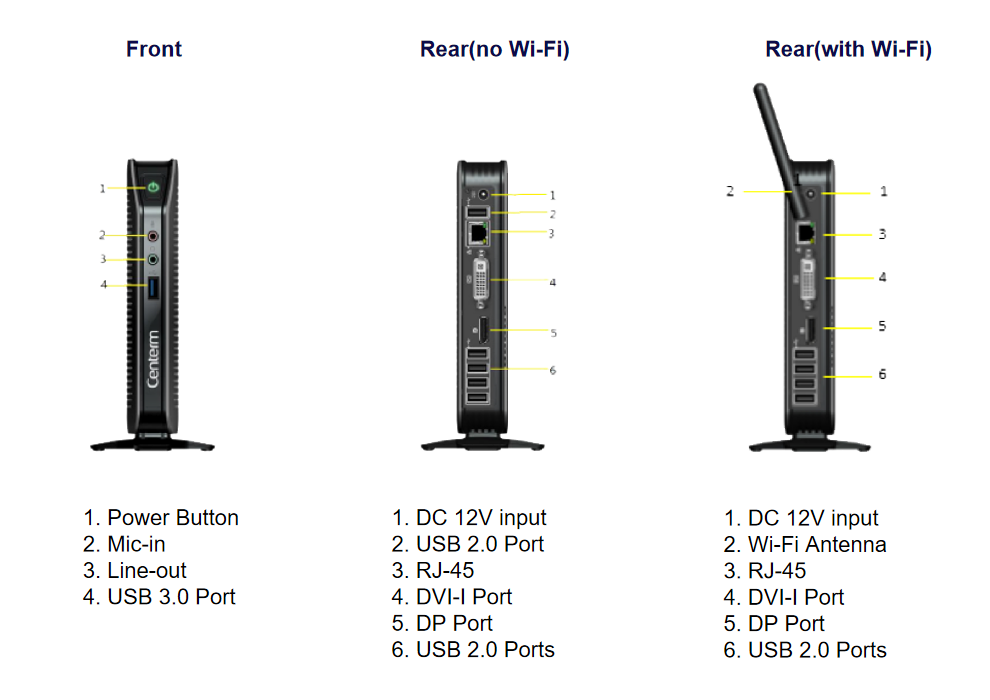

CONNECTIVITY
- Front
- 1.Power Button
- 2. Mic-in
- 3. Line-out
- 4. USB 3.0 Port
- Rear(no Wi-Fi)
- 1. DC 12V input
- 2. USB 2.0 Port
- 3. RJ-45
- 4. DVI-I Port
- 5. DP Port
- 6. USB 2.0 Ports
- Rear(with Wi-Fi)
- 1. DC 12V input
- 2. Wi-Fi Antenna
- 3. RJ-45
- 4. DVI-I Port
- 5. DP Port
- 6. USB 2.0 Ports
Features
● Cost-effective performance
Integrated Intel® Celeron J1900 quad-core, processor
● Dual display supported
● Multiple VDI protocol supported
Widely supports Citrix ICA/HDX, VMware PCoIP and RDP.
● Environment friendly
Low CO2 emission, low heat emission, noise-free and space saving
Connectivity
Specification
| Processor | Intel quad core 2.0GHz |
| Available Operating System | WES7 / WIN 10 IOT / TOS1 |
| VDI/HSD Support | Citrix Receiver / VMware view / Microsoft RDP 8 Compatible |
| Management | CDMS2 |
| RAM (DDR3L) | 2GB |
| Storage (SSD) | 8GB |
| Display | DVI-I x 1 (DVI-to-VGA adapter included) , DP x 1 |
| Resolution | 1920x1200 (DVI) / 1920x1200 (DP) |
| Color Depth | 32 bits |
| Dual Display | Support |
| LAN | x 1 (10/100/1000 Base-T Fast Ethernet, RJ-45) |
| USB 2.0 | x 5 |
| USB 3.0 | x 1 |
| Audio | Line-out x 1 , Mic-in x 1, (1/8-inch mini jack) |
| Dimension | 131mm x 31.5mm x 167mm |
| Net Weight | 0.55kg |
| Adapter | Worldwide auto-sensing 100-240V AC, 50/60 Hz, 12V/3A DC |
| Power Consumption | < 15w |
| Stand | Vertical feet standard |
| Security | Standard Kensington anti-theft keyhole |
| Cooling | Fan-less Convection |
| Operation Temperature | 0℃ to 40℃ |
| Relative Humidity | 30% to 90% non-condensing |
Specification(optional)
| Processor | Intel dual core 2.41 GHz |
| RAM (DDR3L) | Up to 8GB |
| Storage (SSD) | Up to 512 GB |
| Network | 1 x Mini-PCIE wireless module3 |
| Mounting | VESA mounting kit |
SPECIFICATION (Standard)
+- Processor
- Available Operating System
- VDI/HSD Support
- Management
- RAM (DDR3L)
- Storage (SSD)
- Display
- Resolution
- Color Depth
- Dual Display
- LAN
- USB 2.0
- USB 3.0
- Audio
- Dimension
- Net Weight
- Adapter
- Power Consumption
- Stand
- Security
- Cooling
- Operation Temperature
- Relative Humidity
- Intel quad core 2.0GHz
- WES7 / WIN 10 IOT / TOS1
- Citrix Receiver / VMware view / Microsoft RDP 8 Compatible
- CDMS2
- 2GB
- 8GB
- DVI-I x 1 (DVI-to-VGA adapter included) , DP x 1
- 1920×1200 (DVI) / 1920×1200 (DP)
- 32 bits
- Support
- x 1 (10/100/1000 Base-T Fast Ethernet, RJ-45)
- x 5
- x 1
- Line-out x 1 , Mic-in x 1, (1/8-inch mini jack)
- 131mm x 31.5mm x 167mm
- 0.55kg
- Worldwide auto-sensing 100-240V AC, 50/60 Hz, 12V/3A DC
- < 15w
- Vertical feet standard
- Standard Kensington anti-theft keyhole
- Fan-less Convection
- 0℃ to 40℃
- 30% to 90% non-condensing
SPECIFICATION (optional)
+- Processor
- RAM (DDR3L)
- Storage (SSD)
- Network
- Mounting
- Intel dual core 2.41 GHz
- Up to 8GB
- Up to 512 GB
- 1 x Mini-PCIE wireless module3
- VESA mounting kit
