Specialized zero client
Excellent accessing device specially designed for Windows MultiPoint Server™, Userful MultiSeat™ Linux and Monitors anywhere.

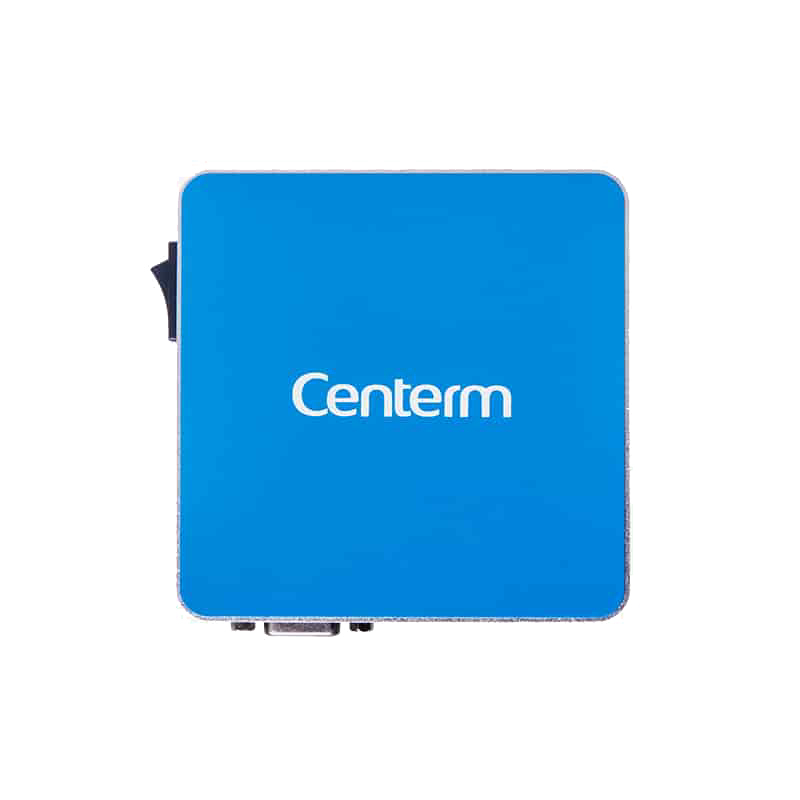

Centerm C75 Zero Client for Userful / Multipoint
Centerm C75 Zero Client for Userful / Multipoint
Centerm zero client C75 is a specialized solution for accessing Windows Multipoint Server™, Userful Multiseat™ linux and Monitors Anywhere. Without local operating system and storage, C75 presents server desktop and applications perfectly to users once it is powered on and connected to the server
FEATURES
-
-
Low cost solution
Low price, low power consumption and no maintenance guarantee the low cost.
-
High performance
Full-HD multimedia and good quality voice supported.
-
Compact, flexible & secure

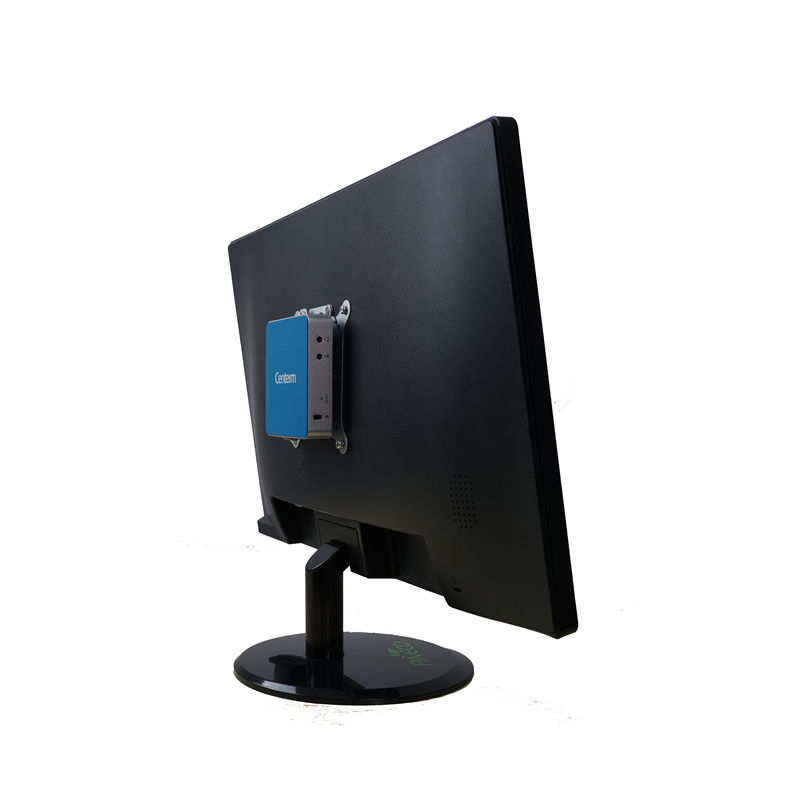

Small size, fan-less design, VESA mountable, anti-theft kensington lock.
-
Environment friendly
Low CO2 emission, low heat emission, noise-free and space saving.

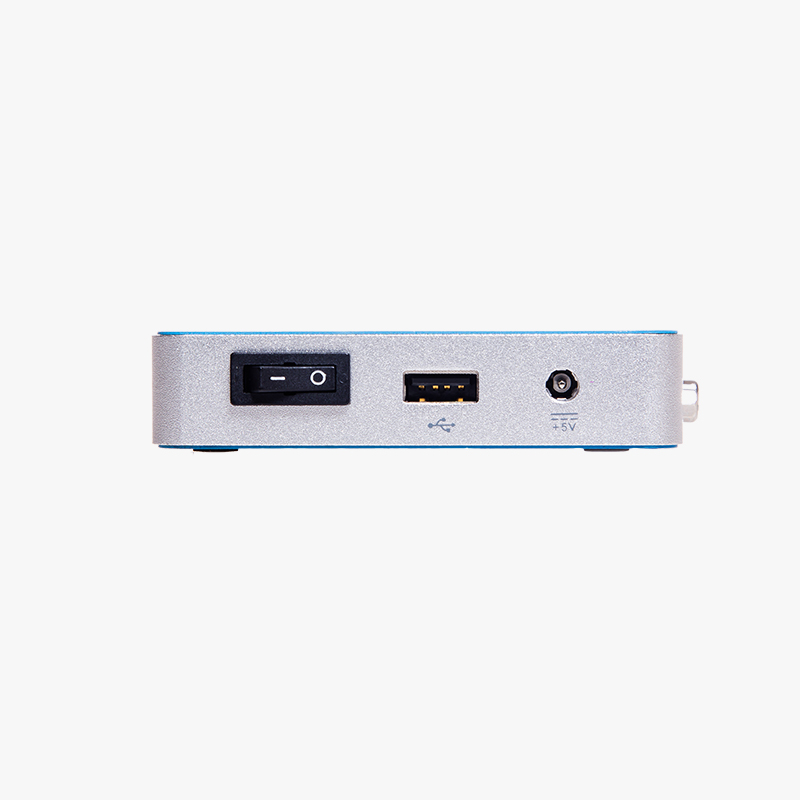

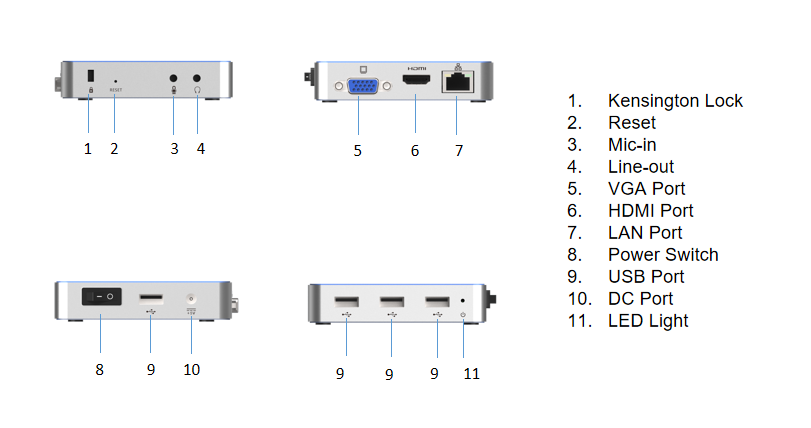

CONNECTIVITY
- Kensington Lock
- Reset
- Mic-in
- Line-out
- VGA Port
- HDMI Port
- LAN Port
- Power Switch
- USB Port
- DC Port
- LED Light
Features
● Specialized zero client
Excellent accessing device specially designed for Windows MultiPoint Server™, Userful MultiSeat™ Linux and Monitors anywhere.
● Low cost solution
Low price, low power consumption and no maintenance guarantee the low cost.
● High performance
Full-HD multimedia and good quality voice supported.
● Compact, flexible & secure
Small size, fan-less design, VESA mountable, anti-theft kensington lock.
● Environment friendly
Low CO2 emission, low heat emission, noise-free and space saving.
Connectivity
Specification
| Chipset | SoC |
| Available Operating System | N/A |
| Server OS Support | Windows Multipoint Server,Userful Multiseat Linux, Monitors Anywhere |
| Storage | N/A |
| Display | VGA x 1 (Dsub -15), HDMI x 1 |
| Resolution | 2048x1152@60Hz (VGA)1920X1080@60Hz (HDMI) |
| LAN | x1 (10/100/1000 Base-T Fast Ethernet, RJ-45) |
| USB 2.0 | x 4 |
| RJ-45 | x 1 |
| Audio | Line-out x 1 , Mic-in x 1, (1/8-inch mini jack) |
| Dimension | 93.5mm x 93.5mm x 20.4mm |
| Packaging | 0.63kg |
| Net Weight | 0.2kg |
| Adapter | Worldwide auto-sensing 100-240V AC, 50/60 Hz, 5V/3A DC |
| Power Consumption | 3.3w |
| VESA Bracket | VESA Mounting Kit |
| Kensington Lock | Built-in Kensington Lock Slot |
| Cooling | Fan-less Convection |
| Operation Temperature | 0℃ to 40℃ |
| Relative Humidity | 30% to 90% non-condensing |
SPECIFICATION
+- Chipset
- Available Operating System
- Server OS Support
- Storage
- Display
- Resolution
- LAN
- USB 2.0
- RJ-45
- Audio
- Dimension
- Packaging
- Net Weight
- Adapter
- Power Consumption
- VESA Bracket
- Kensington Lock
- Cooling
- Operation Temperature
- Relative Humidity
- SoC
- N/A
- Windows Multipoint Server,Userful Multiseat Linux, Monitors Anywhere
- N/A
- VGA x 1 (Dsub -15), HDMI x 1
- 2048×1152@60Hz (VGA) 1920X1080@60Hz (HDMI)
- x1 (10/100/1000 Base-T Fast Ethernet, RJ-45)
- x 4
- x 1
- Line-out x 1 , Mic-in x 1, (1/8-inch mini jack)
- 93.5mm x 93.5mm x 20.4mm
- 0.63kg
- 0.2kg
- Worldwide auto-sensing 100-240V AC, 50/60 Hz, 5V/3A DC
- 3.3w
- VESA Mounting Kit
- Built-in Kensington Lock Slot
- Fan-less Convection
- 0℃ to 40℃
- 30% to 90% non-condensing
