All in one design
Fashionable appearance design, with big 10.1 inch touch screen.

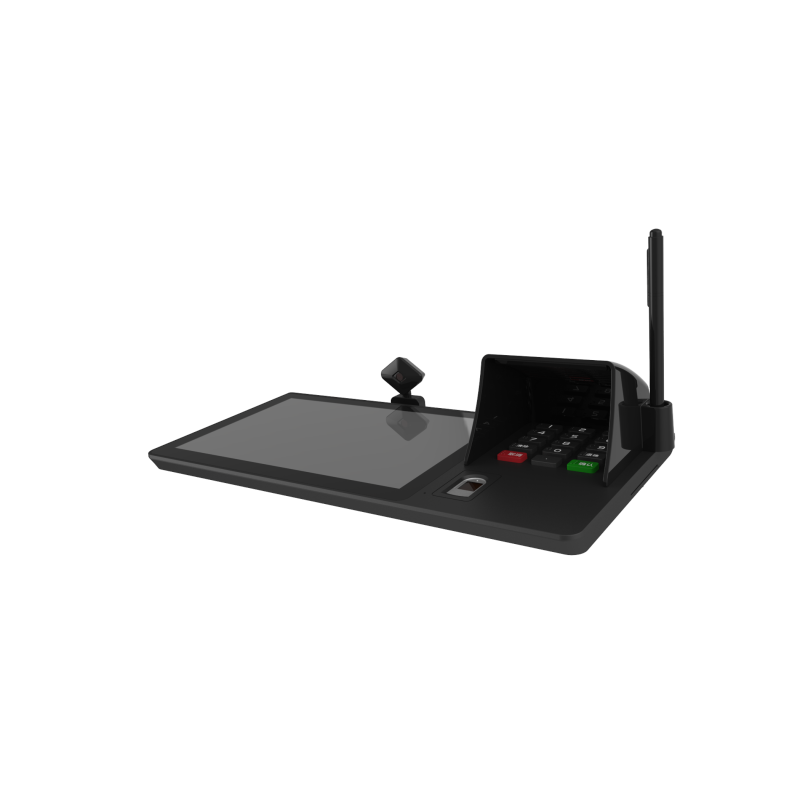

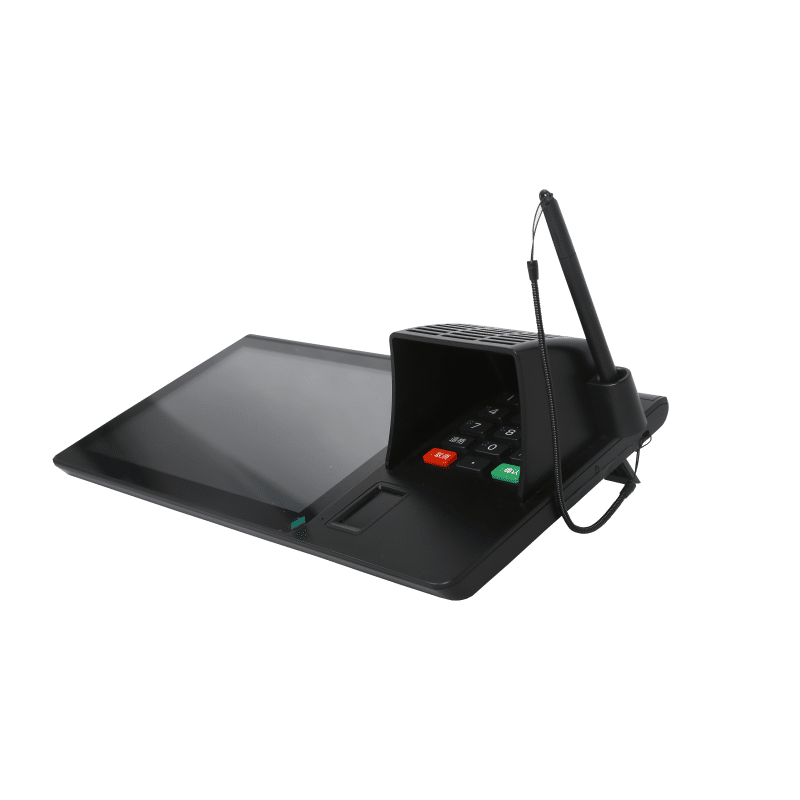

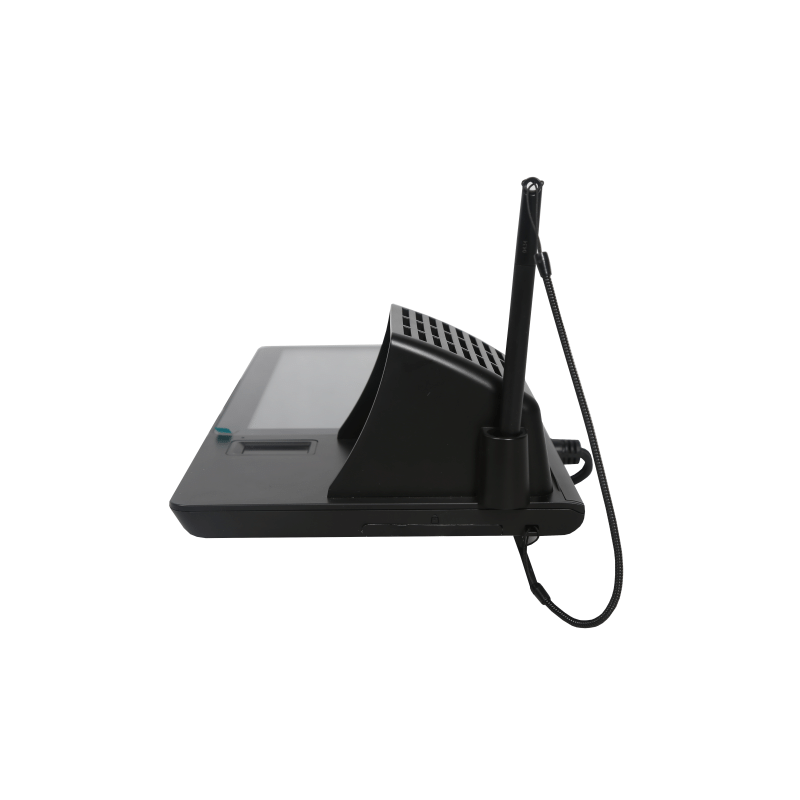

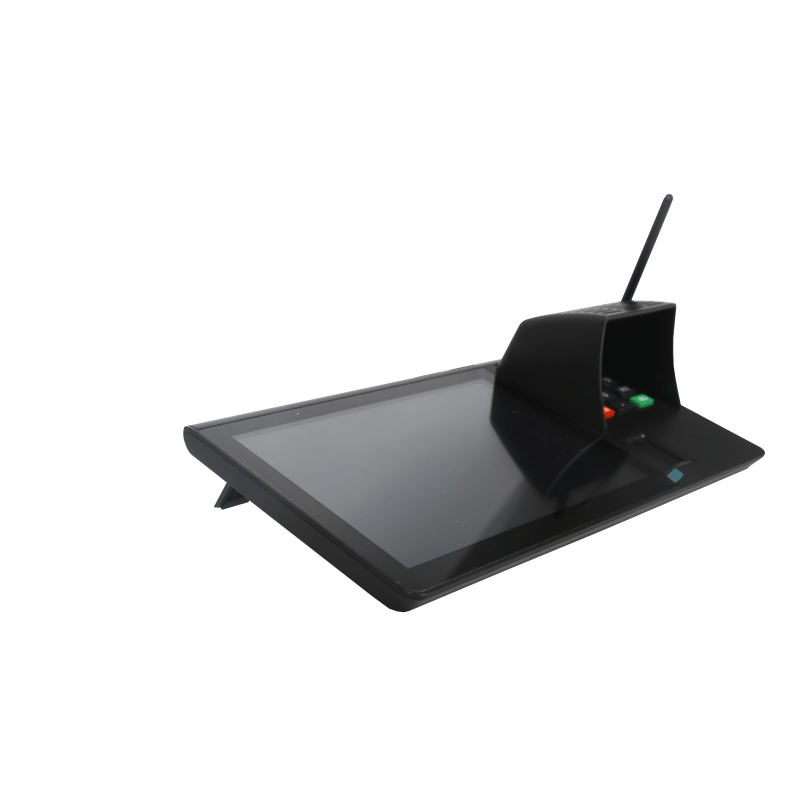

Centerm A10 Electronic Signature Capture Device
Centerm A10 Electronic Signature Capture Device
Centerm intelligent Financial terminal A10 is one new generation multi-media information interactive terminal based on ARM platform and Android OS, and integrated with multiple function modules.
FEATURES
-
-
Physical & virtual Pin pad
Support physical PSW keypad and screen keypad.
-
Multiple financial modules
Multiple peripheral extensions supported, like contact IC card reader, non-contact IC card reader and fingerprint reader.
-
Marketing promotion function
Multi-media screen for advertising and information interaction, making transaction transparent.

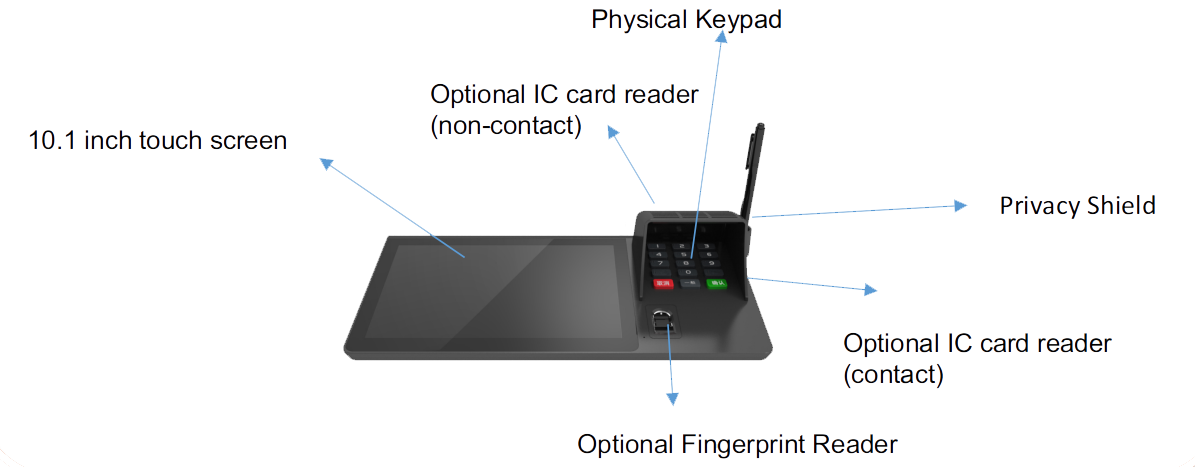

CONNECTIVITY
- Physical Keypad
- Optional IC card reader(non-contact)
- Privacy Shield
- Optional IC card reader(contact)
- Optional Fingerprint Reader
- 10.1 inch touch screen
Features
● Fashionable appearance design, with big 10. 1 inch touch screen
● Support physical PSW keypad and screen keypad
● Multiple peripheral extensions supported, like contact IC card reader, non-contact IC card reader and fingerprint reader
● Multi-media screen for advertising and information interaction, making transaction transparent.

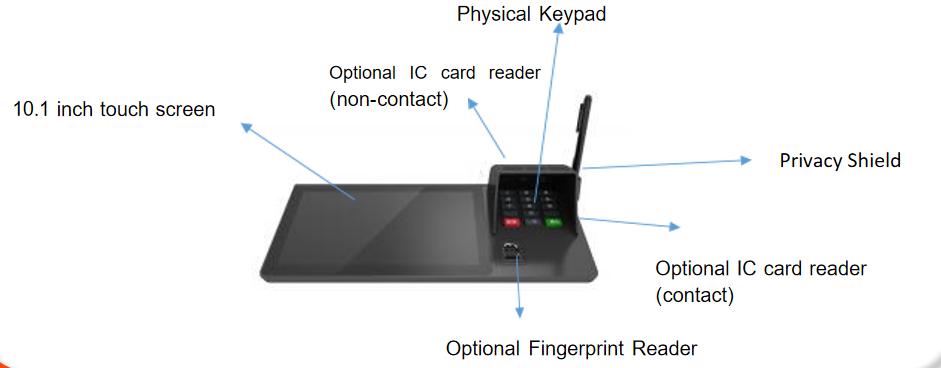

Connectivity
Specification
| processor | ARM Quad-core 1.6GHz |
| Available Operating System Android | |
| MEMORY | |
| RAM (DDR3) | 2GB |
| Storage (eMMC) | 16G8 |
| Monitor | 10.1" Touch Screen (capacitance and efectromagnetic dual mode ). IPS Screen |
| Resolution | 1280 x 800 |
| Color Quality | 24 bit true cotor |
| Electronic Signature | Electromagnetic induction support passive pen |
| Privacy shield | 10.1 <30santi-peep |
| PINPAD | |
| Physical Keys | 0-9. OK key. Cancel key; support braille |
| Encryption Algorithm | Support DES. 3DES |
| Key Security | Key self-destruct when opened |
| I/O PERIPHERAL INTERFACE SD Card Pon | Support TF Card of 2/4/8.'16.32G |
| Serial Pon | x2 (1 male +• 1 female) |
| AUDIO | |
| Mic-in | x 1 (for intercom system ) |
| Speaker | x 1 |
| OPTIONAL PERIPHERAL MODULES USB 2.0 Ports | Optional 2 extended pons |
| Peep Shield | Optional |
| Base bleed device | Bottom antiskid |
| Fingerprint Reader | Optional |
| IC Card Reader | Optional contact / non-contact IC card reader supported |
| Power | |
| Adapter | Worldwide auto-sensing 100-240VAC. SO.'^O Hz. 12V/ 1ADC |
| Auto Power on X off Supper | |
| Dimension | |
| Device | 360mmx175nvnx18mm |
| Net Weight | 1.31kg |
| Temperature | Working: 0C、50C. Storing: - 1OC、55G |
| Humidity | 30%- 90% |
SPECIFICATION
+SYSTEM
- Processor
- Available Operating System
- ARM Quad-core 1.6GHz
- Android
MEMORY
- RAM (DDR3)
- Storage (eMMC)
- 2GB
- 16GB
DISPLAY
- Monitor
- Resolution
- Color Quality
- Electronic Signature
- Privacy shield
- 10.1” Touch Screen (capacitance and electromagnetic dual mode ), IPS Screen
- 1280 x 800
- 24 bit true color
- Electromagnetic induction, support passive pen
- 10.1”, <30°anti-peep
PINPAD
- Physical Keys
- Encryption Algorithm
- Key Security
- 0~9, OK key, Cancel key; support braille
- Support DES, 3DES
- Key self-destruct when opened
I/O PERIPHERAL INTERFACE
- SD Card Port Support
- Serial Port
- TF Card of 2/4/8/16/32G
- x 2 (1 male + 1 female)
AUDIO
- Mic-in
- Speaker
- x 1 (for intercom system )
- x 1
OPTIONAL PERIPHERAL MODULES
- USB 2.0 Ports
- Peep Shield
- Base bleed device
- Fingerprint Reader
- IC Card Reader
- Optional 2 extended ports
- Optional
- Bottom antiskid
- Optional
- Optional contact / non-contact IC card reader supported
Power
- Adapter
- Auto Power on / off
- Worldwide auto-sensing 100-240V AC, 50/60 Hz, 12V / 1A DC
- Support
DIMENSION
- Device
- Net Weight
- 360mmx175mmx18mm
- 1.31kg
Environment
- Temperature
- Humidity
- Working: 0℃- 50℃ , Storing: -10℃ – 55℃
- 30% – 90%
