Professional operating system
Installed with Centerm professional Win10 IoT cloud client operating system, secure and reliable.

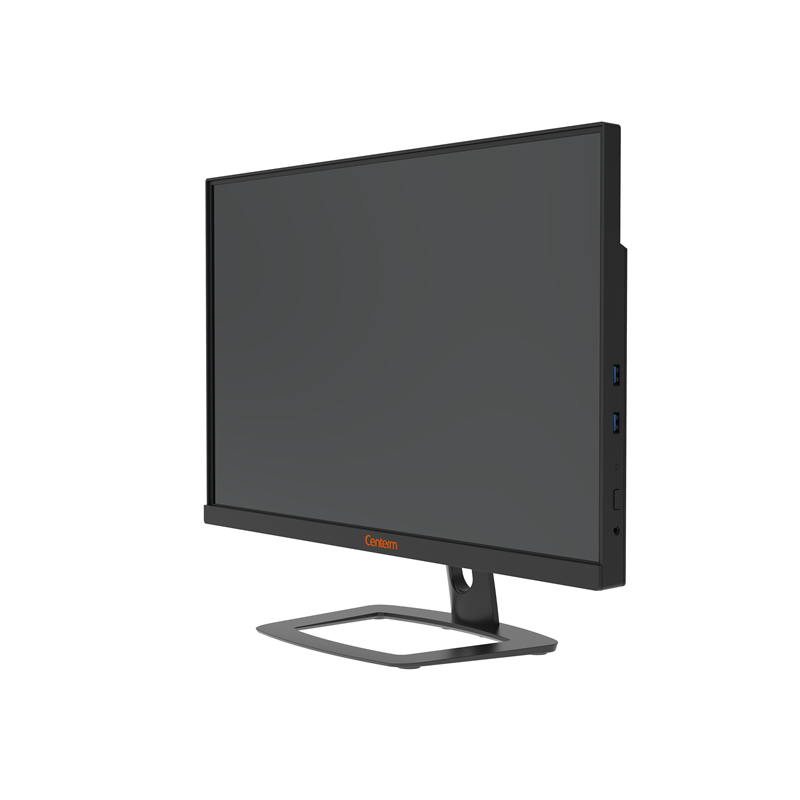

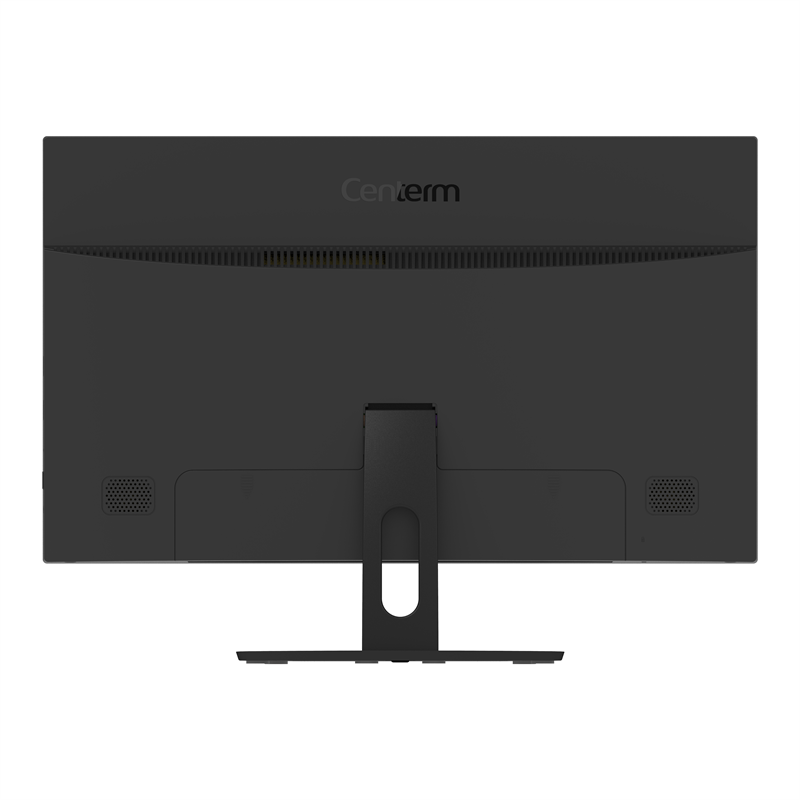

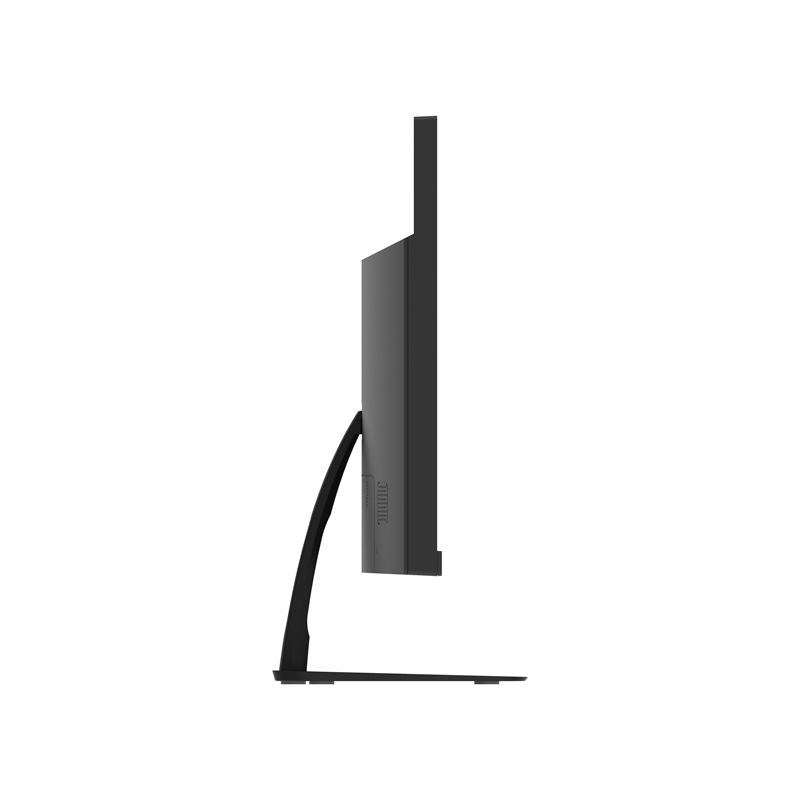

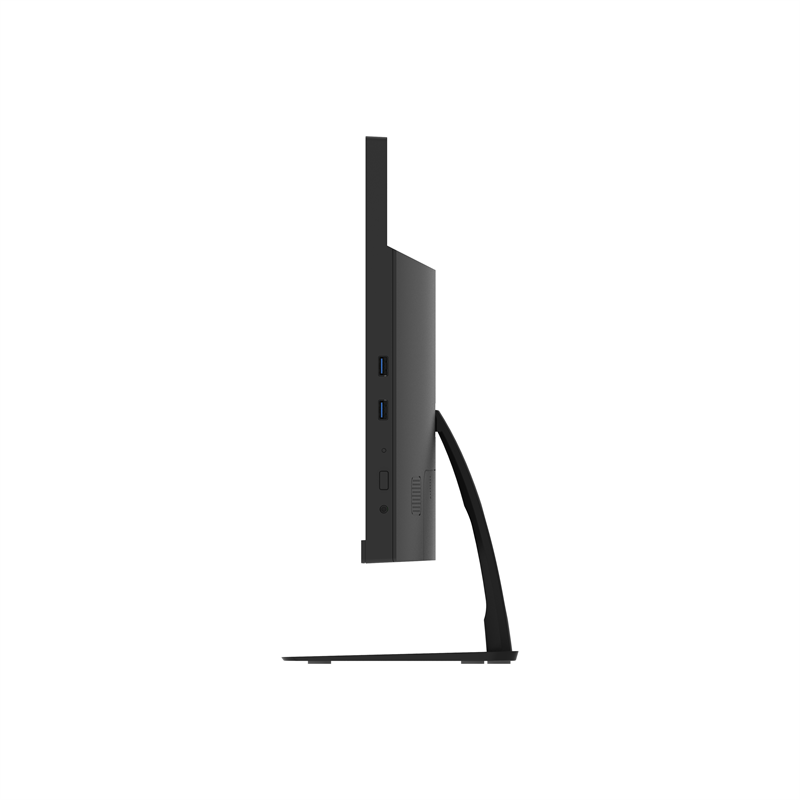

Centerm V660 21.5 inch All-in-one Thin Client
Centerm V660 21.5 inch All-in-one Thin Client
V660 All-in-One client is the perfect replacement of PC plus monitor solution adopting high performance Intel 10th Core i3 processor, big 21.5’ screen and elegant design.
FEATURES
-
-
VDI Support
Supports Citrix, VMware and Microsoft virtualization solutions offer smooth user experience.
-
Leading the All-in-One Trend
With the compact and stylish appearance, greatly saves users’ space, leads the All-in-One trend.
-
Varied Peripherals
8 USB ports, compatible with lots of peripherals

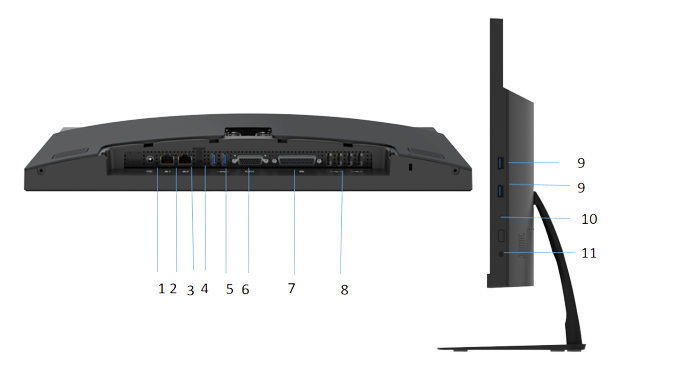

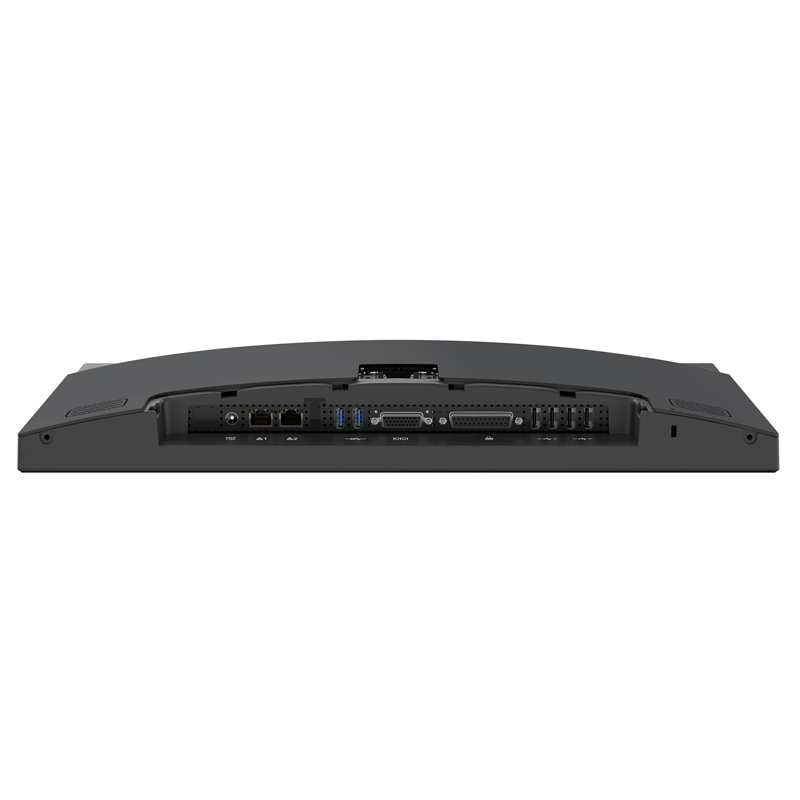

CONNECTIVITY
- 1.DC 19V input
- 2.RJ-45
- 3.RJ-45(optional)
- 4.DP(optional)
- 5.USB 3.0 Ports
- 6.COM Port
- 7.Parallel port
- 8.USB 2.0 ports
- 9.USB 3.0 Ports
- 10.Power button
- 11.3.5 mm 2-in-1
Features
● Professional operating system
Installed with Centerm professional Win10 IoT cloud client operating system, secure and reliable
● VDI Support
Supports Citrix, VMware and Microsoft virtualization solutions offer smooth user experience
● Varied Peripherals
8 USB ports, compatible with lots of peripherals
● Leading the All-in-One Trend
With the compact and stylish appearance, greatly saves users’ space, leads the All-in-One trend.
Connectivity
Specification
| System | |
| Processor | Intel i3 quad core 3.6GHz |
| Operating System | WIN 10 IOT |
| Management | CDMS1 |
| MEMORY | |
| RAM (DDR4) | 8GB |
| Storage | 128GB mSATA |
| DISPLAY | |
| Screen | 21.5” LVDS |
| Resolution | 1920 x1080@ 60Hz |
| NETWORK | |
| LAN | x 1 (10/100/1000 Base-T Fast Ethernet, RJ-45) |
| I/O PERIPHERAL | |
| USB 2.0 | x 4 (rear) |
| USB 3.0 | x 2 (rear) x2 (side) |
| Serial Port | x1 (extensible to 4 via cable) |
| Parallel Port | x1 |
| AUDIO | |
| Port | 3.5 mm 2-in-1 |
| DIMENSION | |
| Device | 490mm x 361mm x 162mm (including stand)490mm x 292mm x 51mm (without stand) |
| POWER | |
| Adapter | Worldwide auto-sensing 100-240V AC, 50/60 Hz, 19V/6.32A/7.89A DC |
| TDP | <65W |
| MOUNTING | |
| Stand | Vertical feet standard |
| Security | Standard Kensington anti-theft keyhole |
| ENVIRONMENT | |
| Cooling | Fan Convection |
| Operation Temperature | 0℃ to 40℃ |
| Relative Humidity | 30% to 90% non-condensing |
| System | |
| Processor | Intel i3 quad core 3.6GHz |
| Operating System | WIN 10 IOT |
| Management | CDMS1 |
| MEMORY | |
| RAM (DDR4) | 8GB |
| Storage | 128GB mSATA |
| DISPLAY | |
| Screen | 21.5” LVDS |
| Resolution | 1920 x1080@ 60Hz |
| NETWORK | |
| LAN | x 1 (10/100/1000 Base-T Fast Ethernet, RJ-45) |
| I/O PERIPHERAL | |
| USB 2.0 | x 4 (rear) |
| USB 3.0 | x 2 (rear) x2 (side) |
| Serial Port | x1 (extensible to 4 via cable) |
| Parallel Port | x1 |
| AUDIO | |
| Port | 3.5 mm 2-in-1 |
| DIMENSION | |
| Device | 490mm x 361mm x 162mm (including stand)490mm x 292mm x 51mm (without stand) |
| POWER | |
| Adapter | Worldwide auto-sensing 100-240V AC, 50/60 Hz, 19V/6.32A/7.89A DC |
| TDP | <65W |
| MOUNTING | |
| Stand | Vertical feet standard |
| Security | Standard Kensington anti-theft keyhole |
| ENVIRONMENT | |
| Cooling | Fan Convection |
| Operation Temperature | 0℃ to 40℃ |
| Relative Humidity | 30% to 90% non-condensing |
SPECIFICATION
+SYSTEM
- Processor
- Operating System
- Management
- Intel i3 quad core 3.6GHz
- WIN 10 IOT
- CDMS1
MEMORY
- RAM (DDR4)
- Storage
- 8GB
- 128GB mSATA
DISPLAY
- Screen
- Resolution
- 21.5” LVDS
- 1920 x1080@ 60Hz
NETWORK
- LAN
- x 1 (10/100/1000 Base-T Fast Ethernet, RJ-45)
I/O PERIPHERAL
- USB 2.0
- USB 3.0
- Serial Port
- Parallel Port
- x 4 (rear)
- x 2 (rear) x2 (side)
- x1 (extensible to 4 via cable)
- x1
AUDIO
- Port
- 3.5 mm 2-in-1
DIMENSION
- Device
- 490mm x 361mm x 162mm (including stand)
490mm x 292mm x 51mm (without stand)
POWER
- Adapter
- TDP
- Worldwide auto-sensing 100-240V AC, 50/60 Hz, 19V/6.32A/7.89A DC
- <65W
MOUNTING
- Stand
- Security
- Vertical feet standard
- Standard Kensington anti-theft keyhole
ENVIRONMENT
- Cooling
- Operation Temperature
- Relative Humidity
- Fan Convection
- 0℃ to 40℃
- 30% to 90% non-condensing
Optional Configuration
+OPTIONAL CONFIGURATION
- CPU
- RAM (DDR4)
- Storage
- Network
- Wi-Fi
- Display
- TPM
- Intel i5 hexa core 3.1GHz
- Max up to 64 GB
- x 1 m.2 (2242 or 2280) x 1 SATA for HDD
- x 1 (10/100/1000 Base-T Fast Ethernet, RJ-45)
- 1 x m.2
- 1 x DP 4096×2304@60Hz
- 2.0
