Simple deployment
With simplified setup, configuration and management. Centerm AIO thin client can be deployed right out-of-the-box.
Centerm V640 21.5 inch All-in-one Thin Client
Centerm V640 21.5 inch All-in-one Thin Client
V640 All-in-One client is the perfect replacement of PC plus monitor solution adopting high performance Intel 10nm Jasper-lake processor with 21.5’ screen and elegant design. Intel Celeron N5105 is a quad-core processor of the Jasper Lake series that is primarily intended for inexpensive desktops and massive official task.
FEATURES
-
-
VDI Support
Supports Citrix, VMware and Microsoft virtualization solutions offer smooth user experience in the cloud computing condition and virtual workspace utilization.
-
Secure
Windows 10 IoT Enterprise with Centerm added security features to hardening to limit attack surfaces and get OS restored from virus and malware quickly.
-
Varied Peripherals
2 x USB3.0 ports, 5 x USB 2.0 ports, 1x multi-utilization type-c port, plus serial port and parallel port, adopting in the scenario of the heavy demands of the peripherals

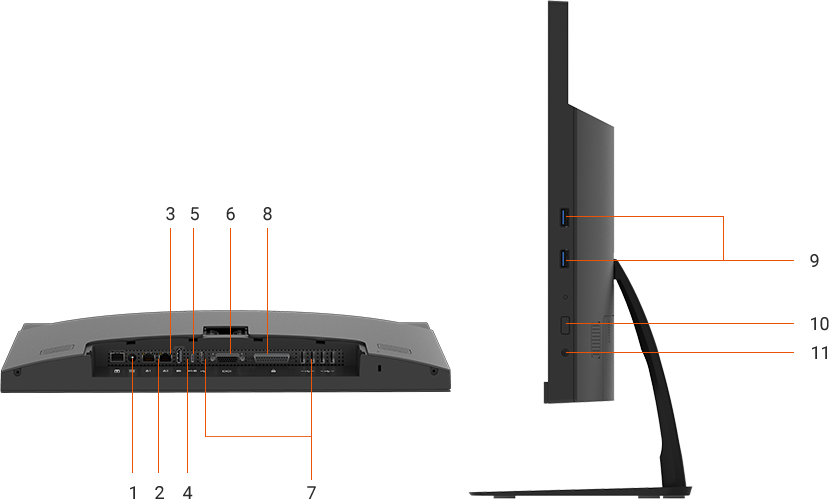

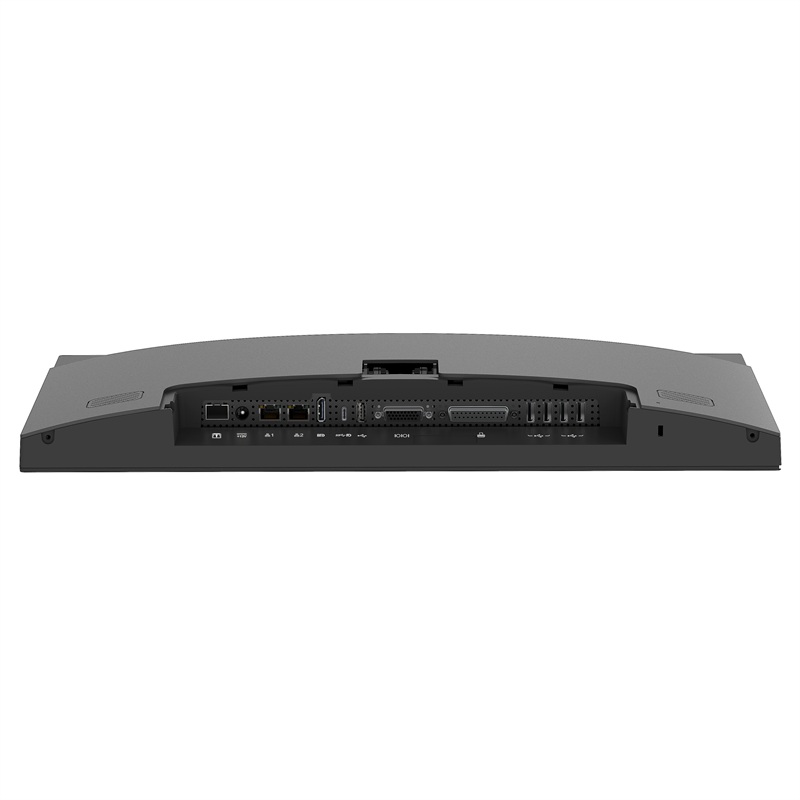

CONNECTIVITY
- 1. DC 19V input
- 2. RJ-45
- 3. RJ-45 (optional)
- 4. Display port(optional)
- 5. Type-C (optional)
- 6. Serial port
- 7. USB 2.0 ports
- 8. Parallel port
- 9 . USB 3.0 ports
- 10. Power button
- 11. Audio port
Features
● Simple deployment
With simplified setup, configuration and management. Centerm AIO thin client can be deployed right out-of-the-box.
● VDI Support
Supports Citrix, VMware and Microsoft virtualization solutions offer smooth user experience in the cloud computing condition and virtual workspace utilization.
● Secure
Windows 10 IoT Enterprise with Centerm added security features to hardening to limit attack surfaces and get OS restored from virus and malware quickly.
● Varied Peripherals
2 x USB3.0 ports, 5 x USB 2.0 ports, 1x multi-utilization type-c port, plus serial port and parallel port, adopting in the scenario of the heavy demands of the peripherals
Connectivity
Specification
| SYSTEM | |
| Processor | Intel quad core 2.0GHz |
| Operating System | WIN 10 IOT |
| Protocol Clients | Citrix workspace app/ Microsoft Remote Desktop Client / VMware Horizon Client |
| Management | CDMS1 |
| MEMORY | |
| RAM (DDR4) | 4 GB |
| Storage | 64 GB mSATA |
| DISPLAY | |
| Screen | 21.5” LVDS :1920 x1080@ 60Hz |
| NETWORK | |
| LAN | x 1 (10/100/1000 Base-T Fast Ethernet, RJ-45) |
| I/O PERIPHERAL | |
| USB 2.0 | x 5 (rear) |
| USB 3.0 | x 2 (side) |
| Serial Port | x1 (extensible to 4 via cable) |
| Parallel Port | x1 |
| AUDIO | |
| Port | 2-in-1 Audio port |
| DIMENSION | |
| Device | 490mm x 361mm x 162mm (including stand)490mm x 292mm x 51mm (without stand) |
| Weight | 3.85kg |
| POWER | |
| Adapter | Worldwide auto-sensing 100-240V AC, 50/60 Hz, 12V/5A DC |
| TDP | 10W |
| MOUNTING | |
| Stand | Vertical feet standard |
| Security | Standard Kensington anti-theft keyhole |
| ENVIRONMENT | |
| Operation Temperature | 0℃ to 40℃ |
| Relative Humidity | 30% to 90% non-condensing |
| Optional Configuration | |
| RAM (DDR4) | Available at 16 GB |
| Storage | x 1 m.2 (2280)x 1 SATA |
| Network | x 1 (10/100/1000 Base-T Fast Ethernet, RJ-45) |
| Type-C | x 1 4096*2160@60Hz |
| DP | x 1 4096*2160@60Hz |
| Speaker | Internal |
| Wi-Fi | x1 m.2 |
| TPM | 2.0 |
SPECIFICATION
+SYSTEM
- Processor
- Operating System
- Protocol Clients
- Management
- Intel quad core 2.0GHz
- WIN 10 IOT
- Citrix workspace app/ Microsoft Remote Desktop Client / VMware Horizon Client
- CDMS
MEMORY
- RAM (DDR4)
- Storage
- 4 GB
- 64 GB mSATA
DISPLAY
- Screen
- 21.5” LVDS :1920 x1080@ 60Hz
NETWORK
- LAN
- x 1 (10/100/1000 Base-T Fast Ethernet, RJ-45)
I/O PERIPHERAL
- USB 2.0
- USB 3.0
- Serial Port
- Parallel Port
- x 5 (rear)
- x 2 (side)
- x1 (extensible to 4 via cable)
- x1
AUDIO
- Port
- 2-in-1 Audio port
DIMENSION
- Device
- Weight
- 490mm x 361mm x 162mm (including stand)
490mm x 292mm x 51mm (without stand) - 3.85kg
POWER
- Adapter
- TDP
- Worldwide auto-sensing 100-240V AC, 50/60 Hz, 12V/5A DC
- 10W
MOUNTING
- Stand
- Security
- Vertical feet standard
- Standard Kensington anti-theft keyhole
ENVIRONMENT
- Operation Temperature
- Relative Humidity
- 0℃ to 40℃
- 30% to 90% non-condensing
Optional Configuration
+- RAM (DDR4)
- Storage
- Network
- Type-C
- DP
- Speaker
- Wi-Fi
- TPM
- Available at 16 GB
- x 1 m.2 (2280)x 1 SATA
- x 1 (10/100/1000 Base-T Fast Ethernet, RJ-45)
- x 1 4096*2160@60Hz
- x 1 4096*2160@60Hz
- Internal
- x1 m.2
- 2.0
