12th Gen Intel® Core Processor
12th Gen CPU given a efficient performance for multi-tasking as what you always want.
Centerm TS660 Reliable Security Thin Client With Trusted Platform Module
Centerm TS660 Reliable Security Thin Client With Trusted Platform Module
Based on Trusted Computing Technology, Centerm TS660 provides a security solution for sensitive computing environments and giving businesses a layer of protection for company data with Trusted Platform Module (TPM). Meanwhile, 12th Gen Intel® Core™ processors offer a unique combination of Performance and Efficient-cores, taking part on more fluent and better experience with unprecedented new performance hybrid architecture.
FEATURES
-
-
System Protection
Support system restore protection and one-key reset, which can avoid end users breaking their systems.
-
Centralized Management
CDMS provides centralized management, including remote configuration, patch updating, system maintenance, print management, application issue.
-
Excellent Scalablility
COM port expandable, inner M.2 for storage and WiFi adpator; TPM2.0 supported

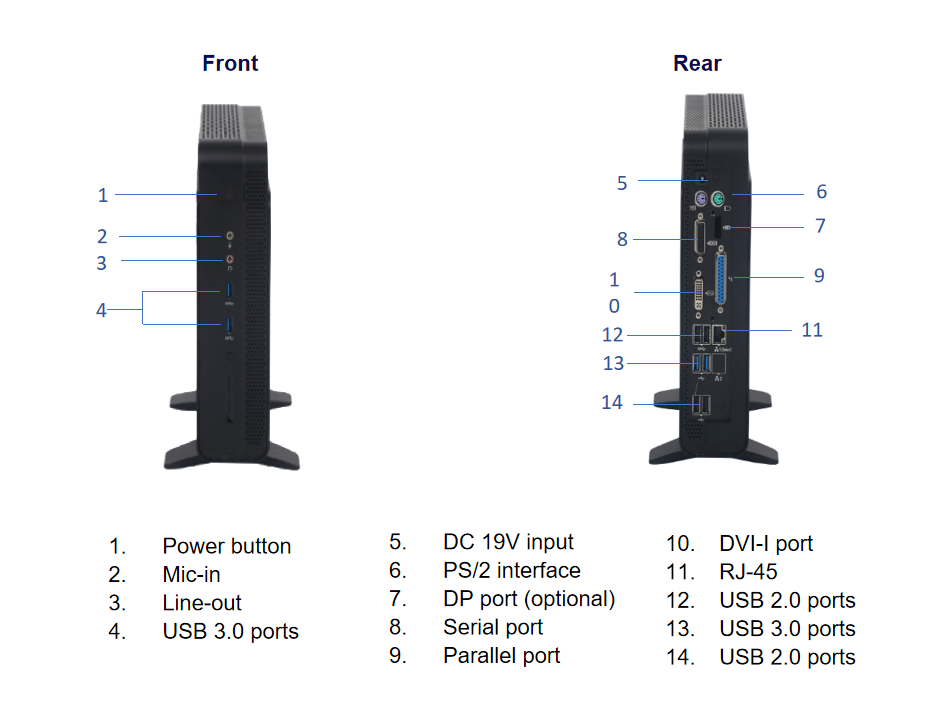

CONNECTIVITY
- 1. Power button
- 2. Mic-in
- 3. Line-out
- 4. USB 3.0 ports
- 5. DC input
- 6. PS/2 interface
- 7. COM port
- 8. Parallel port
- 9. VGA
- 10. HDMI port
- 11. RJ-45
- 12. USB 3.0 ports
- 13. USB 2.0 ports
- 14. Kensington Lock
Features
● 10th Gen Intel® Core Processors
Having 10th Gen Intel Core processor, to manage 3D, advanced video and photo editing and enjoy 4k displays.
● System Protection
Support system restore protection and one-key reset, which can avoid end users breaking their systems.
● Centralized Management
CDMS provides centralized management, including remote configuration, patch updating, system maintenance, print management, application issue.
● More than 30% higher on performance
Quad core and Hexe core are available, Support M.2, PCIE and sata3.0
Connectivity
Specification
| Processor | Intel i3 quad core 3.6GHz |
| Available Operating System | WIN 10 IOT |
| Protocol Clients | Citrix receiver/ RDP client / VmwareTM Horizon ViewTM Client |
| Management | CDMS1 |
| RAM (DDR4) | 8GB |
| Storage (SSD) | 128GB |
| Display | DVI-I x 1 (DVI-to-VGA adapter included)； |
| Resolution | 1920x1200@60Hz(DVI); |
| LAN | x 1 (10/100/1000Mbps,RJ45) |
| USB 2.0 | x 4 |
| USB 3.0 | x 4 |
| Serial Port | x 1 (extensible to 4 via cable) |
| Parallel Port | x 1 |
| PS/2 Port | x 2 |
| Audio | Line-out x 1 , Mic-in x 1 |
| Dimension | 217mm x 64mm x 247mm (without stand)217mm x 120mm x 258mm (with stand) |
| Adapter | World wide auto sensing 100-240V AC, 50/60 Hz, 19V/6.32A DC |
| TDP | < 70w |
| Mountings | Vertical feet standard |
| Security | Standard Kensington anti-theft keyhole |
| Operation Temperature | 0℃ to 40℃ |
| Relative Humidity | 30% to 90% non-condensing |
Optional Items
| Processor | Intel i5 hexa core 3.1 GHz |
| RAM (DDR4) | Available at 64GB |
| Storage | 1 x internal mSATA |
| Display | 1 x DP port |
| Networking | Additional 1 x (10/100/1000Mbps,RJ45)1 x m.2 wireless |
| TPM Module | Optional |
| IC Card Reader | Optional |
SPECIFICATION
+- Processor
- Available Operating System
- Protocol Clients
- Chipset
- RAM (DDR4)
- Storage (SSD)
- Display
- Resolution
- LAN
- USB 2.0
- USB 3.0
- Serial Port
- Parallel Port
- PS/2 Port
- Audio
- Dimension(mm)
- Adapter
- TDP
- Management
- Net Weight
- Security
- Operation Temperature
- Relative Humidity
- Intel 12 Gen i7DodecaCore 2.1GHz –12thGen Processor (up to 4.9 GHz Burst Frequency) 25MB Cache
- WIN 11Professional 64 Bit Genuine License
- Citrix receiver/ RDP client / VmwareTMHorizon ViewTMClient
- H610
- 32GB DDR4 upgradeable to 64GB–2 DIMM Slots
- 512GB upgradeable to 1TB M.2 PCIe NVMeSSD
- VGA, HDMI
- VGA:1920×1200@60Hz; HDMI:4096×2160@60Hz
- x 1 (10/100/1000Mbps,RJ45)
- x 4
- x 4
- x 1(extensible to 4via cable)
- x 1
- x 2
- Line-out x 1 , Mic-in x 1; Internal Speaker
- 206×48×215 (without stand); 206×83×223 (with stand)
- Worldwide auto-sensing 100-240V AC, 50/60 Hz, 19V/6.32A DC
- 60w
- Centerm Desktop Management System
- 1.37 kg
- Standard Kensington lock
- 0℃ to 40℃
- 30% to 90% non-condensing
Optional
+- Processor
- RAM (DDR4)
- Storage
- Display
- Networking
- TPM Module
-
Intel i3 quad core up to 4.3GHz Burst FrequencyIntel i5 hexacore 3.0 GHz
- Available at 64GB
- 1 x internal M.2 & SATA
- 1 x Type-C
-
Additional 1 x (10/100/1000Mbps,RJ45)1 x m.2 wireless
- 2.0 Discrete Hardware Chip
