64 bit kernel for ARM
ARM 64 bit kernel drives up OS for office-based tasks in virtualization scene.

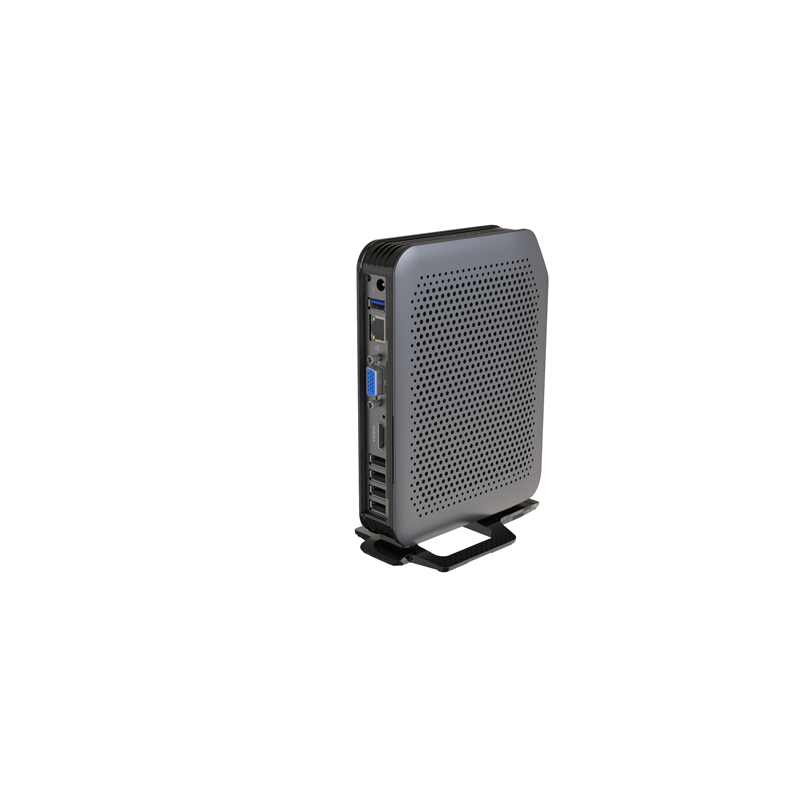

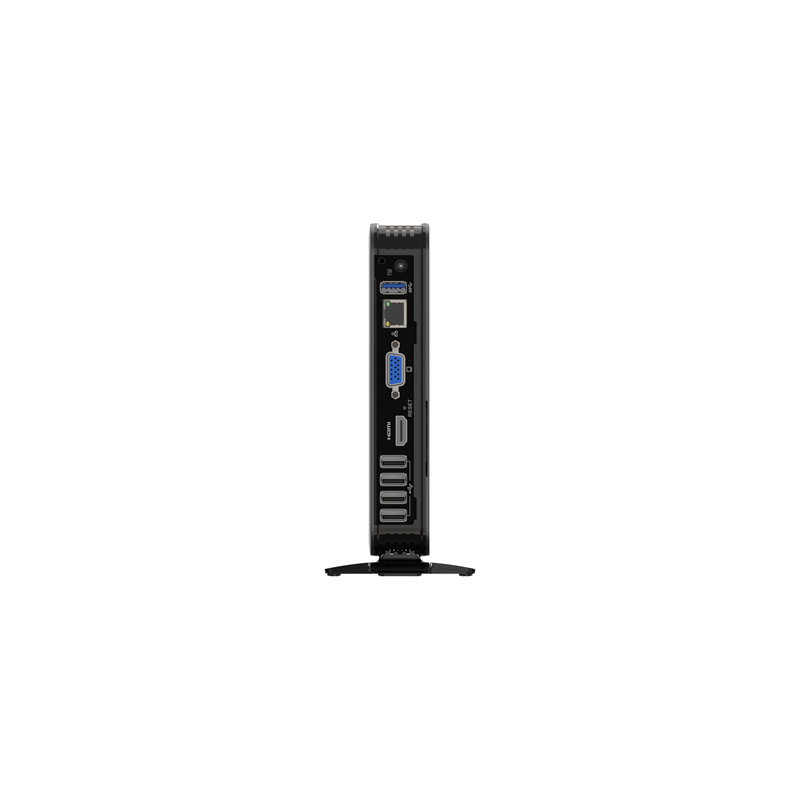

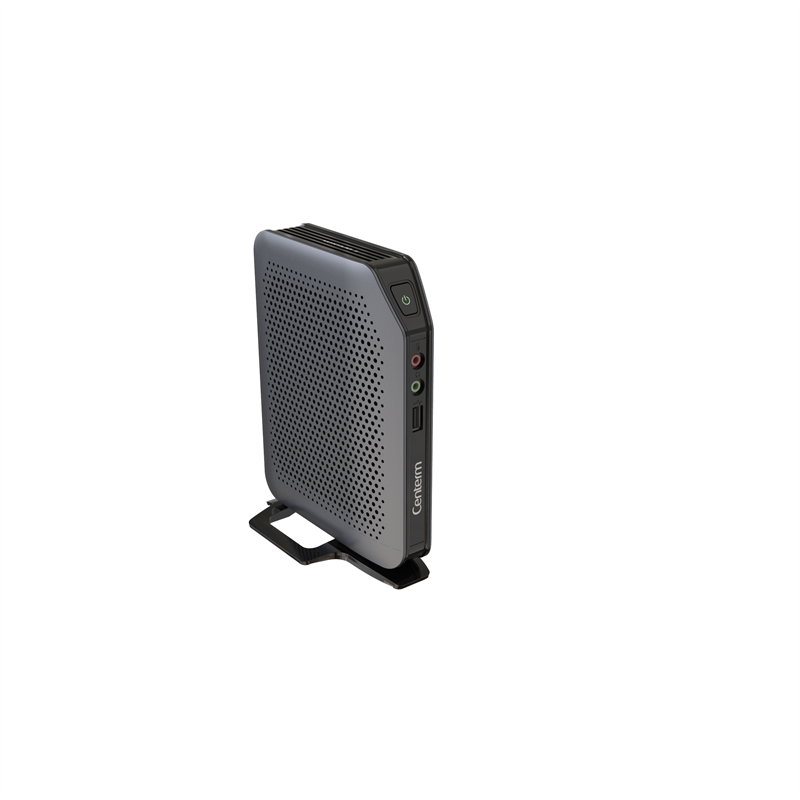

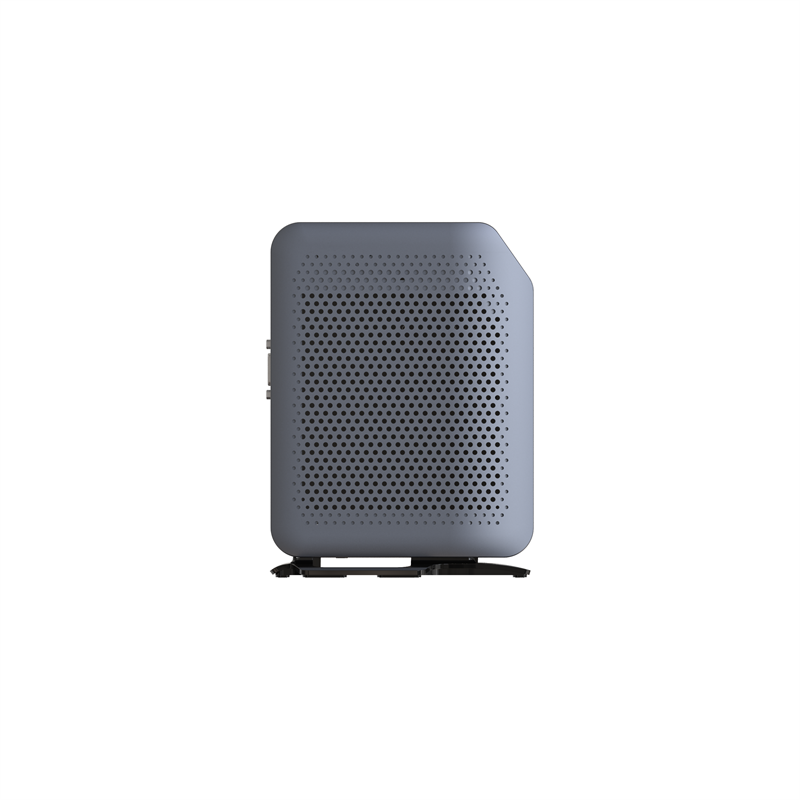

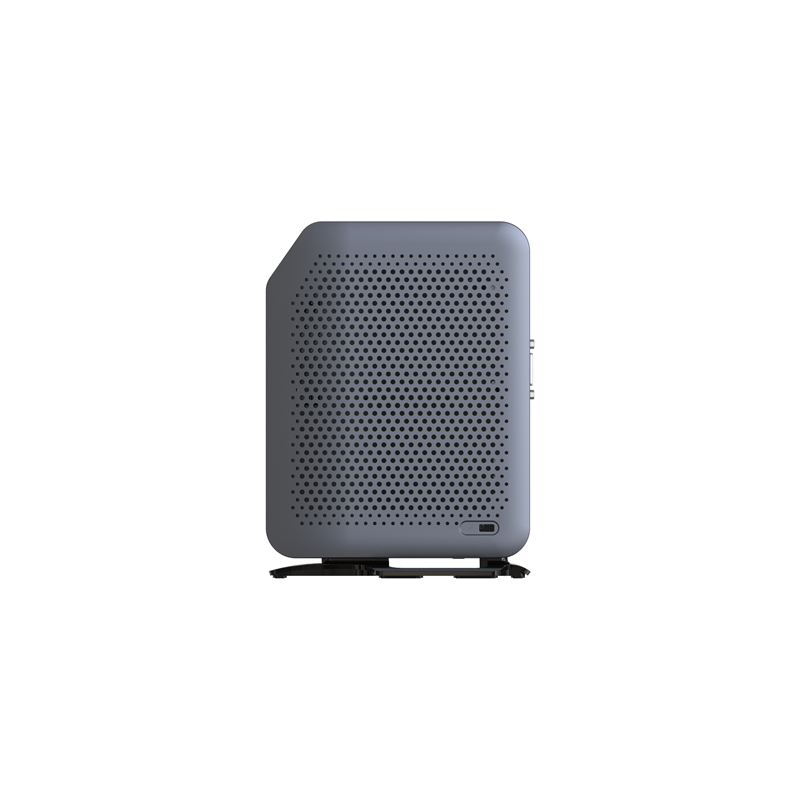

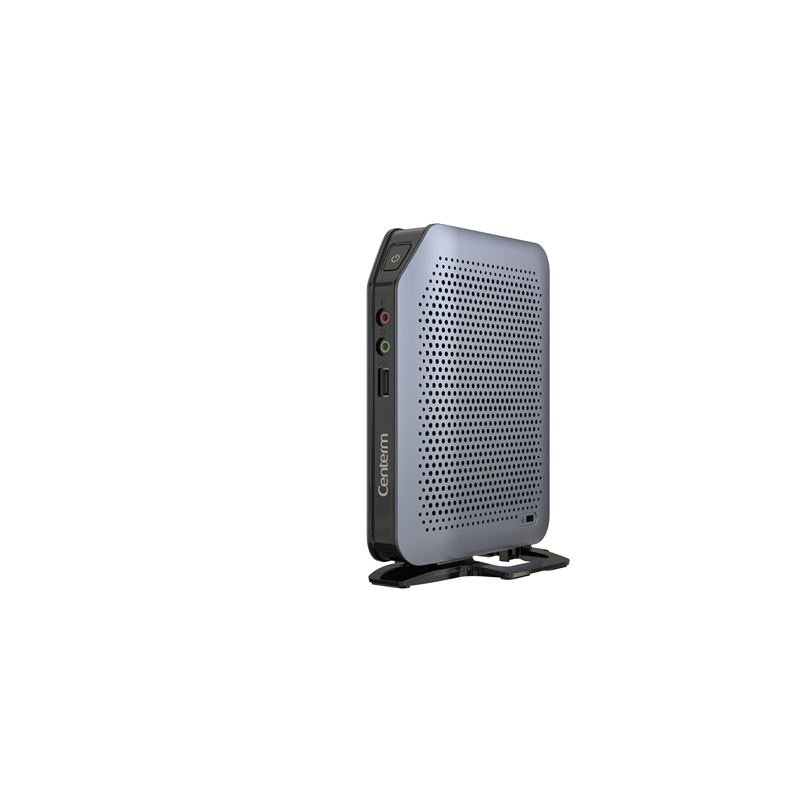

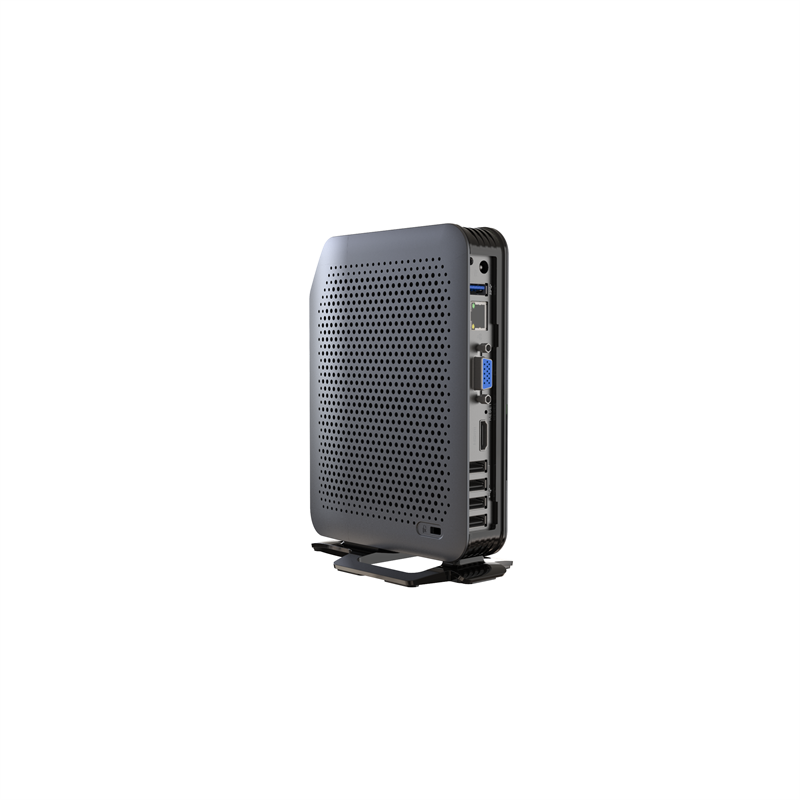

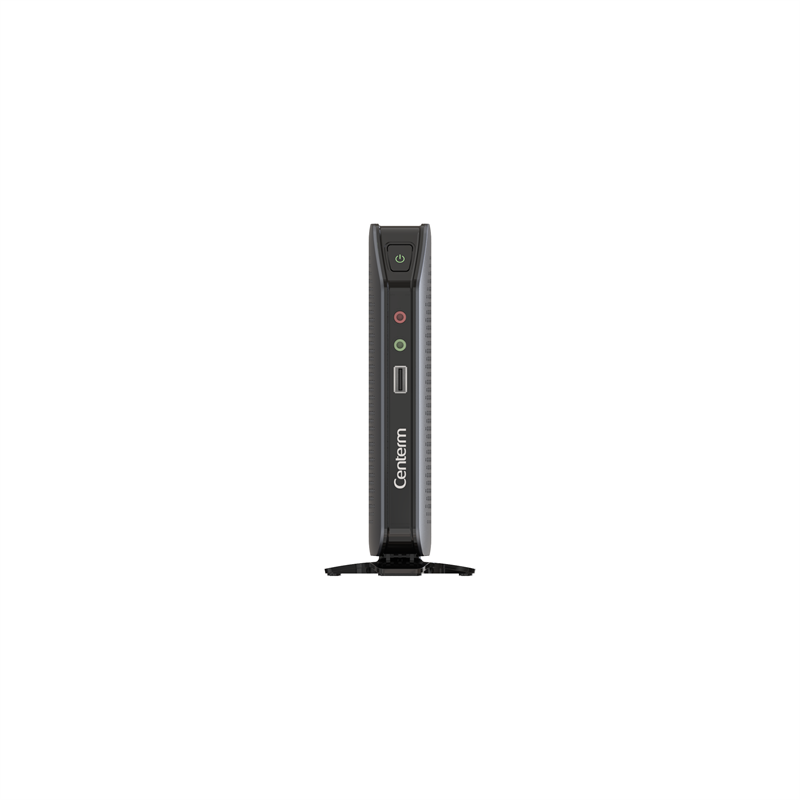

Centerm F320 ARM Linux Thin Client
Centerm F320 ARM Linux Thin Client
ARM 64 bit-based kernel product, Centerm F320 is a thin client based on quad core CPU with 2.0GHz, high performance dedicated GPU and embedded Linux OS. It delivers a outstanding multi-media decode effect,which are suited best in finance, government and some cloud computing scenarios.
FEATURES
-
-
Multiple VDI protocol and security guarantee
Supports Citrix Workspace,VMware and RDP, also supports VPN and firewall function.
-
Easy management and low maintenance cost
With WOL supported chipset, F320 can be waken up and managed remotely, which could save the cost at maintenance and manpower.
-
m.2 interface Wi-Fi and Bluetooth
High-speed transmitted rate with PCI-E at a m.2 interface, bluetooth function is available.

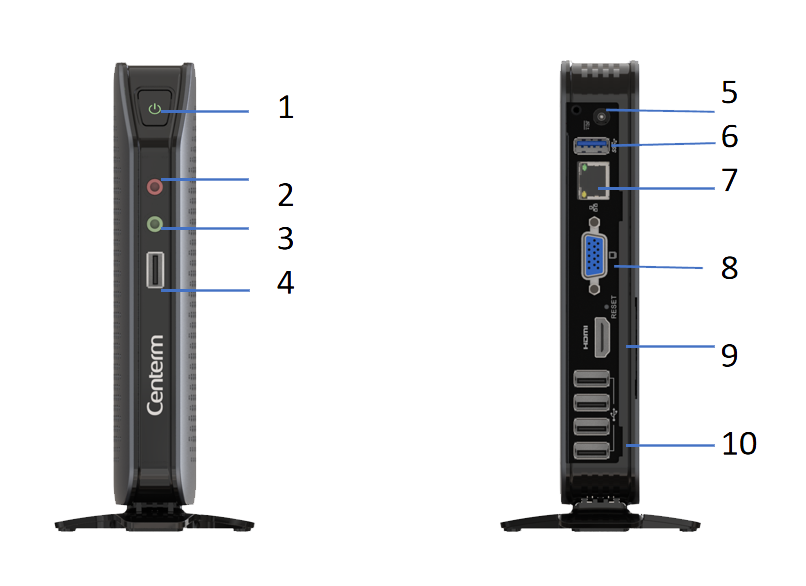

CONNECTIVITY
- 1. Power Button
- 2. Mic-in
- 3. Line-out
- 4.USB 3.0 port
- 5. DC 12v input
- 6. USB 3.0
- 7. RJ-45
- 8 VGA Port .
- 9. HDMI
- 10. USB 2.0 Ports
SPECIFICATION
+SYSTEM
- Processor
- Available Operating System
- Management
- Quad core 2.0GHz
- TOSA 1
- CDMS2
MEMORY
- RAM (DDR4)②
- Storage (eMMC)②
- 2GB
- 8GB
DISPLAY
- Port
- Resolution
- HDMI, VGA x 1
- HDMI:3840 x2560, VGA:1920×1200
NETWORK
- LAN
- x 1 (10/100/1000 Base-T Fast Ethernet, RJ-45)
I/O PERIPHERAL INTERFACE
- USB ports
- x 4（USB 2.0 ), x 2 (USB 3.0)
AUDIO
- Ports
- Line-out x 1 , Mic-in x 1,
DIMENSION
- Device (H x W x D)
- Net Weight
- 131mm x 31.5mm x 167mm (without base)
- 0.44kg
POWER
- Adapter
- Power Consumption
- Worldwide auto-sensing 100-240V AC, 50/60 Hz, 12V/2A DC.
- < 8 w
MOUNTING
- VESA Kit
- Stand
- Yes
- 1
OPTIONAL
- RAM (DDR4)
- Storage
- Wi-Fi (m.2)
- Bluetooth
- max at 4 GB 3
- max at 16GB 3
- 802.11 ac
- Yes
