Centerm D650 Enterprise Thin Client
Centerm D650 Enterprise Thin Client
Centerm D650 is a highly efficient and powerful thin client, delivers exceptional performance with Alder-lake N CPU， an entry-level mobile CPU with a base power consumption of only 6W and therefore suited for fan-less cooling,ensuring an reliable and safety utilization experience. varied sorts of interface also leads it to be a preference for the peripherals demand scenarios.
FEATURES
-
-
Rich I/O for mass peripherals application scenarios
6 USB A, 2 USB-C, COM part and parallel port
-
Triple displays supported for multi-tasks
Full-function type-c, HDMI and VGA
-
Reliability and Safety
Fan-less design and radiation shielding effect
CONNECTIVITY
Features
● Real 4K display
2 DP and USB type-C support resolution rate up to 4K.
● Multiple interfaces
USB 3.0 x 2, type-c x 1 and USB 2.0 x 6, can meet daily demand for USB connection, serial port and parallel port also would enrich peripherals utilizations.
● Trusted Platform Module
Giving businesses a layer of protection for data from penetration.
● Triple display supported
monitors display and work at the same time.
● Dual 1000 Mbps network adaptor
Dual 1000 Mbps Ethernet ports bring a leisured internet suffering and a speeding data transmission

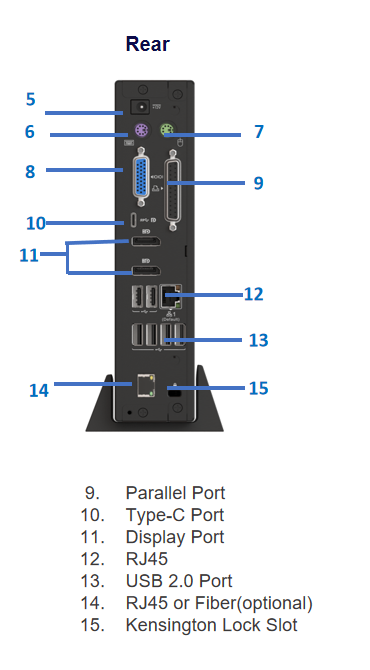

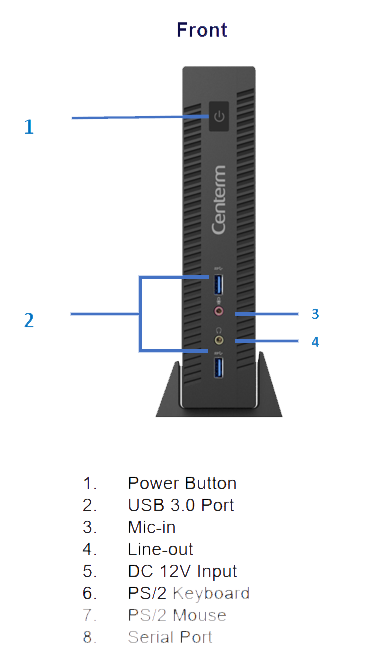

Connectivity
Specification
| Processor | Intel quad core 2.0 GHz |
| Available Operating System | WIN 10 IOT |
| Protocol Clients | Citrix workspace app/ Microsoft Remote Desktop Client / Vmware Horizon Client |
| Management | CDMS1 |
| RAM (DDR4) | 4GB |
| Storage (SSD) | 64GB mSATA |
| Display | 2 x DP |
| Resolution | 4096 x 2160 @ 60Hz (DP) , 4096* 2160 @60Hz (Type-C) |
| LAN | x 1 (10/100/1000Mbps,RJ45) |
| USB 2.0 | x 6 |
| USB 3.0 | x 2 |
| USB Type-C | x 1 |
| Serial Port | x 1 (extensible to 4 via cable) |
| Parallel Port | x 1 |
| PS/2 Port | x 2 |
| Audio | Line-out x 1 , Mic-in x 1 |
| Dimension | 206mm x 48mm x 215mm (stand excluded)/206mm × 83mm ×223mm (stand included) |
| Weight | 1.18kg |
| Adapter | Worldwide auto-sensing 100-240V AC, 50/60 Hz, 12V/3A DC |
| TDP | < 10w |
| Mountings | Vertical feet standard |
| Security | Standard Kensington anti-theft keyhole |
| Cooling | Fan-less Convection |
| Operation Temperature | 0℃ to 40℃ |
| Relative Humidity | 30% to 90% non-condensing |
Optional Items
| RAM (DDR4) | Available at 16 GB |
| m.2 | x 1 SATA or PCIE, 2242 or 2280x 1 (Wi-Fi) |
| Network | x 1 (10/100/1000M bps,RJ45)2 |
| Speaker | x 1 (Internal) |
| Storage | x 1 SATA |
| Fiber Ethernet Adapter.2 | x 1 |
| IC Card Reader | x 1 |
| TPM module | x 1 |
SPECIFICATION
+- Processor
- Available Operating System
- Protocol Clients
- Management
- RAM (DDR4)
- Storage (SSD)
- Display
- Resolution
- LAN
- USB 2.0
- USB 3.0
- USB Type-C
- Serial Port
- Parallel Port
- PS/2 Port
- Audio
- Dimension
- Net Weight
- Adapter
- TDP
- Mountings
- Security
- Cooling
- Operation Temperature
- Relative Humidity
- Intel N97 quad core 2.0 GHz
- WIN 10 IOT / Centerm Linux OS
- Citrix receiver / RDP client / Vmware horizon client (blast extreme)
- CDMS1
- 8GB
- 128GB mSATA
- 1 x Type – C, 1 x HDMI, 1 x VGA
- 3840×2160@60Hz (HDMI), 3840×2160@60Hz (Type C), 1920×1080@60Hz (VGA)
- x 1 (10/100/1000Mbps,RJ45)
- x 4
- x 4
- x 1
- x 1 (extensible to 4 via cable)
- x 1
- x 2
- Line-out x 1 , Mic-in x 1
- 193mm×48mm×215mm (stand excluded); 193mm×83mm×223mm (stand included)
- 1.28kg
- Worldwide auto-sensing 100-240V AC, 50/60 Hz, 12V/3A DC
- < 15w
- Vertical feet standard
- Standard Kensington anti-theft keyhole
- Fan-less Convection
- 0℃ to 40℃
- 30% to 90% non-condensing
Optional items
+- RAM (DDR4)
- Storage
- Networking
- Serial Port
- TPM module
- Available at 16 GB
- 1 * mSATA, max at 512GB; 1 * M.2, max at 1TB; 1 * SATA HDD
- Additional 1 x (10/100/1000Mbps, RJ45); 1 x M.2 wireless module
- Extensible to 6
- Optional
